Home > Products > 50 Ohm Cables > UL/CCC/CE/ROHS approved waterproof RG 58 50 ohms coaxial rg cable

UL/CCC/CE/ROHS approved waterproof RG 58 50 ohms coaxial rg cable

FOB Price

USD $0.18 - $0.22 / Meter

30000 Meters(Min. Order)

Port Shanghai & Ningbo

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	JinJin
Model Number	Coaxial Cable		Type	Coaxial

Product Description

RG 58 A/U Coaxial Cable

-------100% Perfect supporting Video Camera System

		RG58/U	RG58 A/U	RG58C/U
Conductor	Material	BC/TC/TCCA	BC/TC/TCCA	BC/TC/TCCA
	Nom.Dia.	19AWG	19*0.2mm	19*0.18
Dielectric	Material	PE	Foam PE	PE
	Nom.Dia.	2.95mm	2.9 mm	2.9 mm
Shield	Material	BC/TC/TCCA braiding	BC/TC/TCCA braiding	BC/TC/TCCA braiding
	Coverage	95%	95%	95%
Jacket	Material	PVC/PE	PVC/PE	PVC/PE
	Nom.Thick	0.8 mm	0.8 mm	0.8 mm
	Nom.Dia	4.95 mm	4.9 mm	5.08 mm

RG 58 White RG 58 BLK

RG-58 Electrical Characteristics

Attenuation Table(at 20°C)

For CATV
Frequency(MHz)	Maximum(dB/100m)
5	1.9
55	5.25
83	6.4
187	9.35
211	10
250	10.28
300	11.64
350	12.63
400	13.61
450	14.43
500	15.09
550	16.08
600	16.73
750	18.54
865	20.01
1000	21.49

Application

It's widely used in CATV, MATV and CCTV equipments fields.

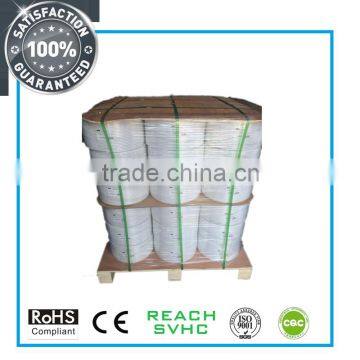

Packing Details

Item No	RG 58/U	RG58/U
Specification	0.912 BC/TC+2.95 PE+BC/TC Braiding(95%)+4.95PE/PVC	0.912 BC/TC+2.95 PE+BC/TC Braiding(95%)+4.95PE/PVC
Packing	100 M/Reel,8 Reels/Carton	305M/Plastic Spool/Carton
Spool Size	1022.57 cm	102625.2 cm
Carton Size	244626.5 CM	272726.5 cm
Pic
G.W	34.8 KG/CTN	13.4 KG/CTN
N.W	32.8 KG/CTN	12.4 KG/CTN
Quantity in a 20 feet Container	840 CTNS	1410 CTNS

Wooden Reels for 305 M Plastic Reel for 305 M

Transportation

1). All available shipping ways could be applied,

BY Sea

BY AIR

BY TRUCK

EVEN DOOR TO DOOR SERVICE,DIRECTLY TO YOUR HOME !

2). Appointed shipping company or our own forwarders all could be used in shipment .

3). Full -way tracking the cargos for you before the goods arrive .

Call us or sending samples

To this address below:

No.597, Maxi Road, Jincheng Street, Lin'an City, Zhejiang Province, 311300, China.

TEL: 86-0571-61061558

FAX: 86-0571-61075868

Certificate

Other Product:

Network Cable
Security/Alarm/Fire system Cable
CATV/CCTV Video Cable
Speaker Cable

Call us if any question,Will support best.
