Europe Standard 17VATC Coaxial Cable For CATV CCTV
- Shanghai & Ningbo
You May Like
-
19PATC Coaxial Cable For Satellite TV
-
19VATC/19PATC euro cable
-
Factory Price 75Ohm Coaxial Cable 19PATC Europe Standardard 17VATC/19PATC
-
75 OHM European Standard TV CATV Cables 17VATC/19PATC
-
17 VATC Coaxial Cable 75 ohm 17 VATC Coaxial Cable, Europe Standard 17VATC Video Cable / VATC Cable
-
17VATC 75 ohm 17 VATC Coaxial Cable, Europe Standard 17VATC Video Cable / VATC Cable with PE Jacket
Product Details
| Place of Origin | Zhejiang, China | Brand Name | JinJin | |
| Model Number | 17VATC Coax Cable | Type | Coaxial | |
| Number of Conductors | 1 |
Product Description
17VATC Cable Europe Standard---Good Quality Best Price
-----30m,50m,100m.200m long distance signal transmission
white color cable
Black color cable
1/1.02mm CU/bare copper+4.8mm Foamed PE+100%Bonded Aluminum Foil Shield+64/0.12mm AL.wire Shield-40% Coverage+100%Double-sided Aluminum Foil shield+64/0.12mm AL.wire Shield-40% Coverage+7.3mm PVC.
| PLEASE NOTE BRAIDING CAN BE DIFFERENT BASED ON EACH SPECIFICATIONS/FROM 64-148 WIRES ALL AVALIABLE |
The clients' designations are avaliable.
| 1)Inner Conductor: | 1.0mm CU; |
| 2)Insulation: | 4.8mm Foamed PE; |
| 3)Aluminum Foil Shield: | 100%Bonded Aluminum Foil and 100%Duoble-sided Aluminum Foil; |
| 4)Braid Shield: | 64/0.12mm AL.wire-40%Coverage; |
| 5)Outer Jacket: | 7.3mm PVC. |

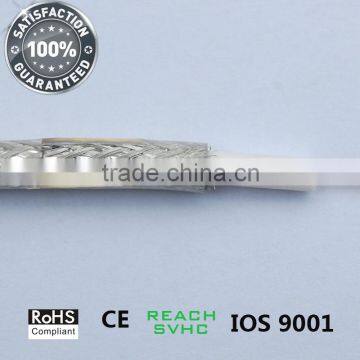

Cable structure
17 VATC DATA (1MHZ-110MHZ)
Capacitance | 50±3.0 nf/km | |
Impedance | 75±3.0 Ohms | |
Velocity of Propagation | 85% | |
Shielding Effectiveness | 55MHz | ≥60dB |
300MHz | ≥70dB | |
1000MHz | ≥70dB | |
Return Loss (100%swept) | 1-470MHz | ≥22dB |
470-1000MHz | ≥20dB | |
1000-2200MHz | ≥18dB | |
Attenuation Table(at 20°C)
For CATV | |
Frequency(MHz) | Maximum(dB/100m) |
5 | 1.9 |
55 | 5.25 |
83 | 6.4 |
187 | 9.35 |
211 | 10 |
250 | 10.28 |
300 | 11.64 |
350 | 12.63 |
400 | 13.61 |
450 | 14.43 |
500 | 15.09 |
550 | 16.08 |
600 | 16.73 |
750 | 18.54 |
865 | 20.01 |
1000 | 21.49 |
Application
It's widely used in CATV, MATV and CCTV equipments fields.
17VATC SEMI-FINISHED PRODUCT PACKING
17VATC WOODEN REEL PACKAGE:
TESTING
RL TESTING, Characteristic Impedance, capacitance tsting,
PVC,FPE,MATERIAL DENSITY TESTING
EG: TESTING PAPER,
We are strictly on quality control,from raw material to finished product,
We just manufacturer cable
...a lot.
Q:Are you Trading company or factory?
A:We JINJIN CABLE is a 20 years experienced coaxial cable manufacturer,we are not only produce standard Coaxial cables,but also help customer to perfect their cables and make sure it can work.
Q:Do you have any certificate?
A:We have CE,Rhos,Reach,IOS 9001,Based on the requirements of customers we also can produce UL,CMP,CMR standard cables.
Q:What about your MOQ?
A:Let’s start with 15 KM.
Q:Do you accept L/C?
A:Yes,of course.we can deal with Cash,TT at sight,L/C at Sight. But no D/P Please.
Q:Can I get your samples to test?
A:Yes,sample for free.Please inform us your EMS/TNT/DHL/FEDEX or any express account.
If get other problems,call us today or email us,we can talk more in details.
