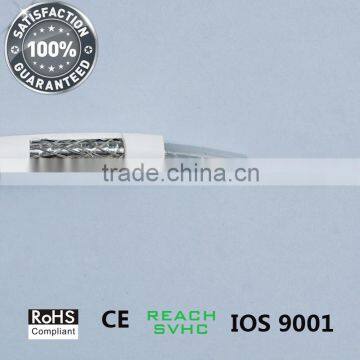

RG 58 A/U Coaxial Cable
- Shanghai & Ningbo
You May Like
-
UL/CCC/CE/ROHS approved 200m/reel waterproof RG 58 leaky coaxial cable
-
UL/CCC/CE/ROHS approved waterproof RG 58 50 ohms coaxial rg cable
-
RG 58/A-U Coaxial Cable Video Cable For CCTV VIDEO
-
Stranded conductor RG 58 Tinned Copper conductor White RG 58 Coaxial cable Easy for solder
-
MIL-C-17F 50 Ohm M17/28-RG 58(RG 58 C/U) High quality Coax Cable
-
Tinned Copper RG 58 Coaxial cable 50 Ohm
Product Details
| Place of Origin | Zhejiang, China | Brand Name | JinJin | |
| Model Number | Coaxial Cable | Type | Coaxial | |
| Number of Conductors | 1 |
Product Description
RG 58 C/U Coaxial Cable
-------100% Perfect supporting Video Camera System
| RG58/U | RG58 A/U | RG58C/U | ||
| Conductor | Material | BC/TC/TCCA | BC/TC/TCCA | BC/TC/TCCA |
| Nom.Dia. | 19AWG | 19*0.2mm | 19*0.18 | |
| Dielectric | Material | PE | Foam PE | PE |
| Nom.Dia. | 2.95mm | 2.9 mm | 2.9 mm | |
| Shield | Material | BC/TC/TCCA braiding | BC/TC/TCCA braiding | BC/TC/TCCA braiding |
| Coverage | 95% | 95% | 95% | |
| Jacket | Material | PVC/PE | PVC/PE | PVC/PE |
| Nom.Thick | 0.8 mm | 0.8 mm | 0.8 mm | |
| Nom.Dia | 4.95 mm | 4.9 mm | 5.08 mm |
RG 58 White RG 58 BLK
RG-58 Electrical Characteristics
Attenuation Table(at 20°C)
For CATV | |
Frequency(MHz) | Maximum(dB/100m) |
5 | 1.9 |
55 | 5.25 |
83 | 6.4 |
187 | 9.35 |
211 | 10 |
250 | 10.28 |
300 | 11.64 |
350 | 12.63 |
400 | 13.61 |
450 | 14.43 |
500 | 15.09 |
550 | 16.08 |
600 | 16.73 |
750 | 18.54 |
865 | 20.01 |
1000 | 21.49 |
Application
It's widely used in CATV, MATV and CCTV equipments fields.
Packing Details
| Item No | RG 58C/U | RG58/U |
| Specification | 0.912 BC/TC+2.95 PE+BC/TC Braiding(95%)+4.95PE/PVC | 0.912 BC/TC+2.95 PE+BC/TC Braiding(95%)+4.95PE/PVC |
| Packing | 100 M/Reel,8 Reels/Carton | 305M/Plastic Spool/Carton |
| Spool Size | 10*22.5*7 cm | 10*26*25.2 cm |
| Carton Size | 24*46*26.5 CM | 27*27*26.5 cm |
| Pic |
| |
| G.W | 34.8 KG/CTN | 13.4 KG/CTN |
| N.W | 32.8 KG/CTN | 12.4 KG/CTN |
Quantity in a 20 feet Container | 840 CTNS | 1410 CTNS |
Wooden Reels for 305 M Plastic Reel for 305 M
Certificate
Other Product:
- Network Cable
- Security/Alarm/Fire system Cable
- CATV/CCTV Video Cable
- Speaker Cable
Call us if any question,Will support best.
