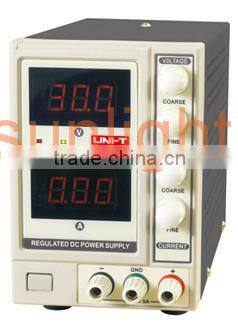

One Channel DC Power Supply Meter, DC Voltage and Current Supply, 0-30V/0-5A, UTP3315TFL
- Shanghai
- T/T Credit Card
You May Like
-
Programmable DC Power Supply, Programmable DC Voltage and Current Supply, 0-30V/0-3A, Ultra-high Accuracy, RS232, UTP1303B
-
Programmable DC Power Supply, Programmable DC Voltage and Current Supply, 0-30V/0-5A, Ultra-high Accuracy, RS232, UTP1305B
-
Multi-Function Network Tester, Cable Locator, Cable Finder, UTN821
-
Multi-Function Cable Finder, Cable Locator, UT681A
-
AC/DC Voltage And Continuity Tester, Phase Rotation and Polarity Detection, UT18A
-
AC/DC Voltage And Continuity Tester, Phase Rotation and Polarity Detection, UT18B
Product Details
| Place of Origin | Guangdong, China | Brand Name | UNI-T | |
| Model Number | UTP3315TFL | Display Type | Digital Only | |
| Output Voltage | 0~30V | Operating Temperature | 0°C~+40°C | |
| Dimensions | 210 * 152 * 305mm |
Product Description
Feature:
Has a master-slave tracking, constant voltage, constant current function, steady flow automatically converted, the state will not use any external damage.
Specifications:
Specification | Range |
Model | UTP3315TFL |
Output Voltage | 0~30V |
Output Current | 0~5A |
Overload Effect | 1x 10-4+2mV |
Ripple & Noise | ≤0.3mVrms |
Regulation | CV:20mV (Typical ), CC:50mA (Typical ) |
Indication Method | LED display also shows the voltage and current values |
Reliability | MTBF (e): ≥2000 hours |
Feature | Current Limitation, Auto Switching Between Voltage and Current Operation. |
General Characteristics | |
Power | Input Voltage:110VAC / 220VAC;Frequency:40Hz~60Hz |
Product Colour | White and Gray |
Product Net Weight | 2.8 Kg |
Product Size (W×H×D) | 105mm ×160mm × 240mm |
Standard Accessories | Power Cord |
Standard Individual Packing | Gift Box, English Manual |
Standard Quantity Per Carton | 6 PCs |
Standard Carton Measurement (W×H×D) | 530mm × 315mm × 485mm (0.056 CBM Per Export Carton) |
Standard Carton Gross Weight | 20 Kg |
Contrast:
Specification | Range | |
Model | UTP3313TFL | UTP3315TFL |
Output Voltage | 0~30V | 0~30V |
Output Current | 0~3A | 0~5A |
Overload Effect | 1x 10-4+2mV | |
Ripple & Noise | ≤0.3mVrms | |
Regulation | CV:20mV (Typical ), CC:50mA (Typical ) | |
Indication Method | LED display also shows the voltage and current values | |
Reliability | MTBF (e): ≥2000 hours | |
Feature | Current Limitation, Auto Switching Between Voltage and Current Operation. | |
General Characteristics | ||
Power | Input Voltage:110VAC / 220VAC;Frequency:40Hz~60Hz | |
Product Colour | White and Gray | |
Product Net Weight | 2.8 Kg | |
Product Size (W×H×D) | 105mm ×160mm × 240mm | |
Standard Accessories | Power Cord | |
Standard Individual Packing | Gift Box, English Manual | |
Standard Quantity Per Carton | 6 PCs | |
Standard Carton Measurement (W×H×D) | 530mm × 315mm × 485mm (0.056 CBM Per Export Carton) | |
Standard Carton Gross Weight | 20 Kg | |
Accesories:
Power Cord
