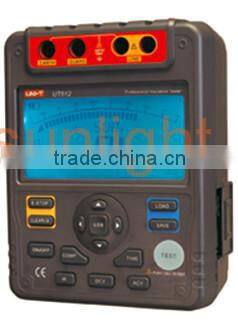

Insulation Resistance Tester, Datalogger, USB Interface, UT512

Specification

Range

Best Accuracy

Model

UT512

Insulation Resistance(Ω)

Test Voltages

500V/1000V/1500V/2500V

0%~20%

500V

1MΩ~5GΩ

±(3%+5)

1000V

2MΩ~10GΩ

±(3%+5)

1500V

5MΩ~20GΩ

±(3%+5)

2500V

10MΩ~100GΩ

±(3%+5)

Short Circuit Current

<1.8mA

DC Voltage (V)

600V

±(2%+5)

AC Voltage (V)

600V

±(2%+5)

Features

Auto Range

Yes

Auto Power Off

Yes

Low Battery Indication

Yes

Data Logging

18

Comparison

Yes

Polarization Index(PI)

Yes

Dielectric Absorption (DAR)

Yes

USB Interface

Yes

LCD Backlight

Yes

Analogue Bar Graph

30

Over Range  Warning

Yes

High Voltage Indication

Yes

Timer

Around 15 minutes

Yes

General Characteristic

Power

1.5V Alkaline Batteries(LR14)×8

LCD Size

123mm x 58mm

Product Color

Red & Grey

Product Net Weight

1.8Kg

Product Size

202mm×155mm×94mm

Standard Accessories

2PCs of one plug test lead to one alligator clip(Black and Green),1 PC of two plugs test lead to one alligator clip(Red), Batteries, Tool Box, USB  Cable,PC Software CD, Power Adaptor

Standard Individual Packing

Gift Box, English Manual

Standard Quantity Per Carton

4 PCs

Standard Carton Measurement

525mm x 335mm x 345mm (0.061CBM Per Standard Carton)

Standard Carton Cross Weight

18Kg

Specification

Range

Best Accuracy

Model

UT511

UT512

UT513A

Insulation Resistance(Ω)

Test Voltages

100V/250V/500V/1000V

0%~20%

500V/1000V/1500V/2500V

0%~20%

500V/1000V/2500V/5000V

0%~20%

100V

0.1MΩ~500MΩ

±(3%+5)

250V

0.5MΩ~2GΩ

±(3%+5)

500V

1MΩ~4GΩ

±(3%+5)

1MΩ~5GΩ

±(3%+5)

0.0MΩ~20GΩ

±(3%+5)

1000V

2MΩ~10GΩ

±(3%+5)

±(3%+5)

0.0MΩ~40GΩ

±(3%+5)

1500V

5MΩ~20GΩ

±(3%+5)

2500V

10MΩ~100GΩ

±(3%+5)

0.0MΩ~100GΩ

±(3%+5)

5000V

0.0MΩ~1000GΩ

±(3%+5)

Short Circuit Current

<2mA

<1.8mA

>3.0mA

DC Voltage (V)

1000V

±(2%+3)

600V

±(2%+5)

±(2%+3)

AC Voltage (V)

750V

±(2%+3)

600V

±(2%+5)

±(2%+3)

Low Resistance (Ω)

0.1Ω~999.9Ω

±(1%+3)

Features

Auto Range

Yes

Yes

Yes

Auto Power Off

Yes

Yes

Yes

Secondary Display

Yes

Low Battery Indication

Yes

Yes

Yes

Data Logging

18

18

18

Comparison

Yes

Yes

Yes

Polarization Index(PI)

Yes

Yes

Yes

Dielectric Absorption (DAR)

Yes

Yes

Yes

USB Interface

Yes

Yes

LCD Backlight

Yes

Yes

Yes

Analogue Bar Graph

30

30

30

Over Range  Warning

Yes

Yes

Yes

High Voltage Indication

Yes

Yes

Yes

Timer

Around 30 minutes

Yes

Around 15 minutes

Yes

Yes

General Characteristic

Power

1.5V Alkaline Batteries(LR14)×8

LCD Size

123mm x 58mm

Product Color

Red & Grey

Product Net Weight

UT511-1.2Kg, UT512-1.8Kg, UT513A-2Kg

Product Size

202mm×155mm×94mm

Standard Accessories

UT511 - 2PCs of one plug test lead to one alligator clip(Black and Green), 1 PC of two plugs test lead to one alligator clip(Red), Batteries, Tool Box.

UT512/UT513A -  2PCs of one plug test lead to one alligator clip(Black and Green),1 PC of two plugs test lead to one alligator clip(Red), Batteries, Tool Box, USB  Cable,PC Software CD, Power Adaptor

Standard Individual Packing

Gift Box, English Manual

Standard Quantity Per Carton

4 PCs

Standard Carton Measurement

525mm x 335mm x 345mm (0.061CBM Per Standard Carton)

Standard Carton Cross Weight

UT511-13Kg, UT512-18Kg, UT513A-19Kg

Optional Accessories*

Power Adaptor(UT511 only)
