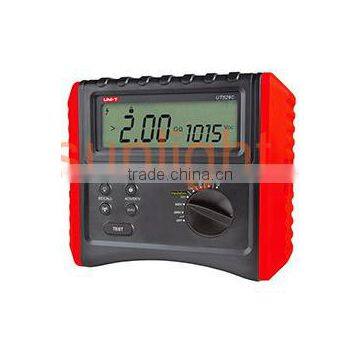

Multi-function Insulation Tester, Ground Resistance Tester, Datalogger, UT529C
- Shanghai
 - T/T Credit Card

You May Like
-


Digital RCD (ELCB) Tester, Residual Current Device, UT581
 -


Digital RCD (ELCB) Tester, Residual Current Device, UT582
 -


Digital RCD (ELCB) Tester, Residual Current Device, UT583
 -


Digital RCD (ELCB) Tester, Residual Current Device, UT585
 -


Digital RCD (ELCB) Tester, Residual Current Device, UT586
 -


Multifunctions Electric Meter, Insulation Resistance/RCD/Voltage Tester, UT525

Product Details
| Place of Origin | Guangdong, China | Brand Name | UNI-T | |
| Model Number | UT529C | Display Type | Digital Only | |
| Dimensions | 210mm * 175mm * 90mm |
Product Description
Features:
UT529 series is new digital multi-functional electric safety testing instrument designed with intelligent micro-processing chip, and circuit system with full function protection. It measures insulation resistance, grounding resistance, capacitance, low resistance continuity, DC voltage, and frequency. UT529 is accurate, stable, easy to use, safe and reliable in operation. It combined two common measurement functions into one, the insulation resistance and the grounding resistance, gives you maximum convenience.
UT529 is widely used in electric power, electrical, metallurgy, chemical engineering, and manufacturing industry; for power electrical system insulation and grounding measurement, inspection and maintenance.
Specification:
Specifications  | Range  | Best Accuracy  | |
Model  | UT529C  | ||
Insulation Resistance (Ω)  | Test Voltages  | 250V/500V/1000V  | ±10%  |
Range  | 0.05M~250MΩ  | ±(5%+5)  | |
0.05M~500MΩ  | ±(5%+5)  | ||
0.05M~1GΩ  | ±(5%+5)  | ||
Short Circuit Current:  | <2mA  | Yes  | |
Low Resistance Continuity (Ω)  | Range  | 2Ω/20Ω/220Ω  | ±(2%+5)  |
Test Open DC Voltage  | 5V  | Yes  | |
Test Current(MAX)  | 250mA  | Yes  | |
AC Voltage and Frequency  | AC Voltage (Freq.)  | 0V~600V(45Hz~65Hz)  | ±(3%+5)  |
Frequency Range  | 45Hz~400Hz  | ±(0.1%+3)  | |
DC Voltage (V)  | Range  | -600V~600V  | ±(2%+5)  |
Ground Resistance (Ω)  | Range  | 40Ω  | ±(3%+0.1)  |
400Ω  | ±(3%+3)  | ||
4000Ω  | ±(3%+3)  | ||
AC Earth Voltage(Freq.)  | 0V~600V/45Hz~65Hz  | ±(3%+5)  | |
Capacitance (F)  | Range  | 0μ~50μF  | ±(3%+10)  |
Test Frequency  | 400Hz  | Yes  | |
Features  | |||
Display Count  | 9999  | ||
Auto Range  | Yes  | ||
Simple 2-Wires Testing  | Ground Resistance Only  | Yes  | |
Precision 3-Wires Testing  | Ground Resistance Only  | Yes  | |
Auto Power Off  | Yes  | ||
Low Battery Indication  | Yes  | ||
Data Hold  | Yes  | ||
Relative Mode  | Yes  | ||
Data Logging  | 20  | ||
LCD Backlight  | Yes  | ||
High Voltage Indication  | Yes  | ||
Input Protection  | Yes  | ||
General Characteristic  | |||
Power  | 1.5V Alkaline Batteries(LR6) * 8  | ||
LCD Size  | 125mm * 37mm  | ||
Product Color  | Red and Grey  | ||
Product Net Weight  | 1000g  | ||
Product Size  | 210mm * 175mm * 90mm  | ||
Standard Accessories  | Batteries, Carrying Bag, Simpe Test Lead with Clips (double plugs x 1, single plug x 1), Standard Test Lead with Clips (20M red x 1, 10M yellow x 1, 5M green x 1) , Test Probe x 2, Alligator clip with Test Lead  | ||
Standard Individual Packing  | Gift Box, English Manual  | ||
Standard Quantity Per Carton  | 4 PCs  | ||
Standard Carton Measurement  | 510mm * 330mm * 330mm (0.056CBM Per Standard Carton)  | ||
Standard Carton Gross Weight  | 15Kg  | ||
Accessories:
Batteries,
Carrying Bag,
Simple Test Lead With Clips (double plugs x 1, single plug x 1),
Standard Test Lead with Clips (20M red x 1, 10M yellow x 1, 5M green x 1) ,
Test Probe x 2,
Alligator clip with Test Lead
