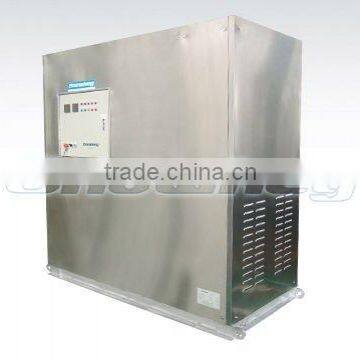

Chemical Industry Plate Ice Maker

FOB Price

US$ 5,000 - 100,000 / Set

1 Set(Min. Order)

Port Fuzhou port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Capacity	1-100ton per day	Place of Origin	Fujian, China
Brand Name	Snowkey	Model Number	PIM
Ice Shape	Other, ice plate	Certification	CE

Product Description

Specifications

Plate ice is discharged in the form of easy-to-handle crushed ice and can be used for a variety of purposes.

Chemical industry plate ice maker daily production capacity:
1) PIM10: 1000kg/24hr
2) PIM20: 2000kg/24hr
3) PIM30 3000kg/24hr
4) PIM50: 5000kg/24hr
5) PIM60: 6000kg/24hr
6) PIM80: 8000kg/24hr
7) PIM100: 10, 000kg/24hr
8) PIM150: 15, 000kg/24hr
9) PIM200: 20, 000kg/24hr
10) PIM250: 25, 000kg/24hr
11) PIM300: 30, 000kg/24hr
12) PIM400: 40, 000kg/24hr
13) PIM500: 50, 000kg/24hr
14) PIM1000: 100, 000kg/24hr
Plate ice is discharged in the form of easy-to-handle crushed ice and can be

used for a variety of purposes. It comes in irregular shapes, and its texture is

dry, hard and transparent. On average the crushed ice is 12 - 16mm in thickness

and approximately 3 - 4 x 4 - 5cm in size. This kind of ice is most suitable for

industries such as fishing and chemistry. Due to its small surface, its coolness

lasts longer than any other type of ice.
Although the standard power supply is 380V/50Hz/3P, it is also compatible

with the following power supplies: 220V, 400V, 440V and 3P 50/60Hz. The models

described in this page are manufactured exclusively for fresh water use.
Please contact us for details on outdoor use models. The evaporator uses the

direct expansion system. -17º C is the standard evaporating temperature for

R-22. Ammonia (NH3) can also be used as refrigerant.

Please contact us for details when selecting this specification.
