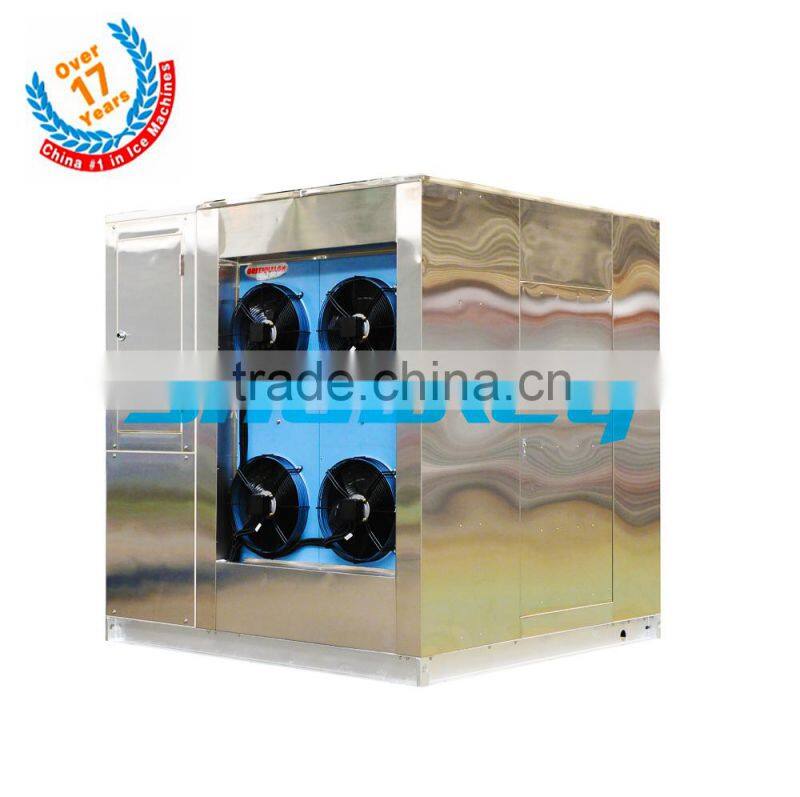

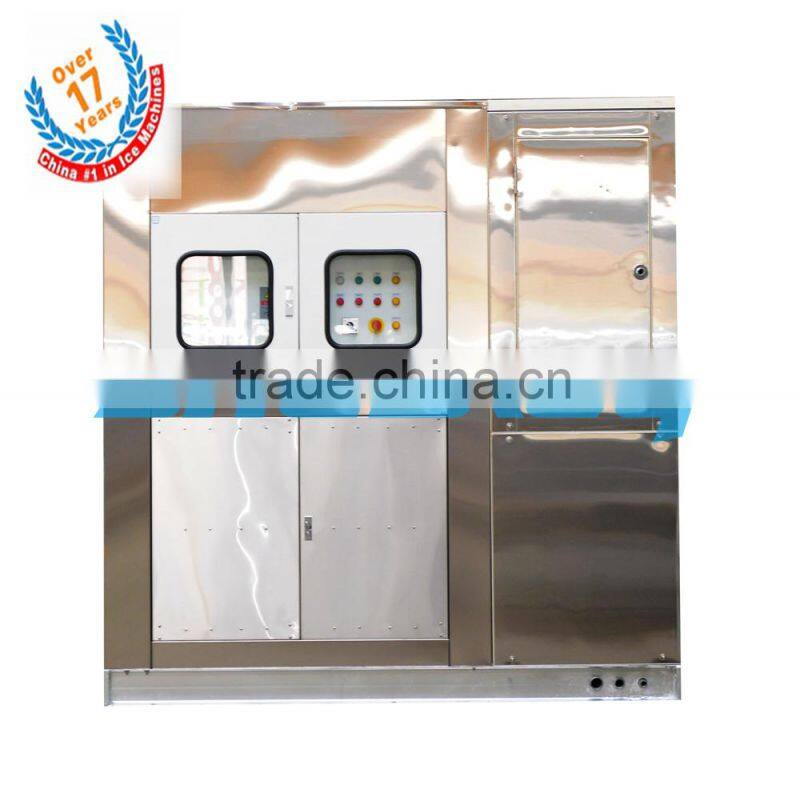

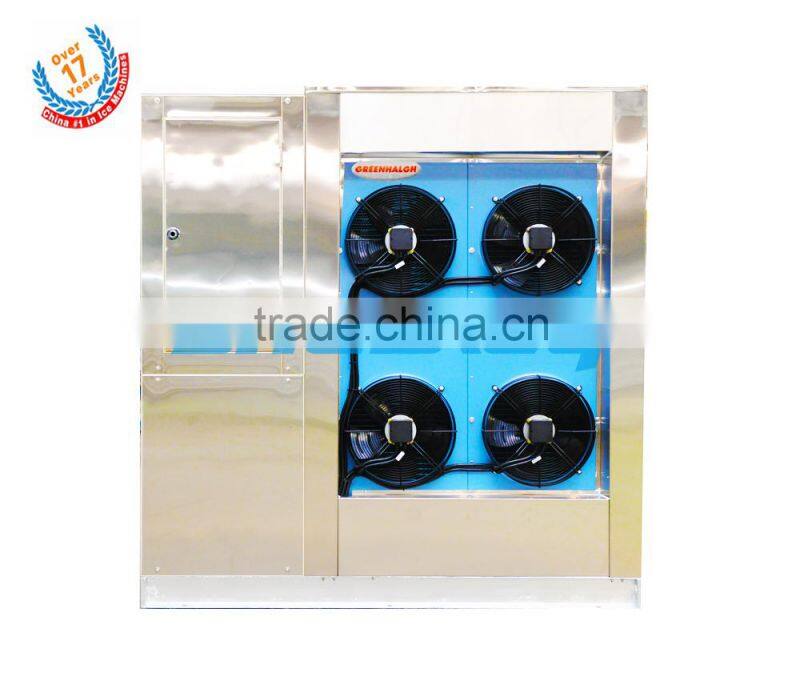

CHINA TOP 1Plate Ice Making Plate 3T Ice Maker High Quality Ice Making Machine

 Plate ice machine applications
1 Aquatic product processing, cooling,preserving and transportation
2 Edible ice making factory
3 Port ice making factory
4 Chemical projects and dye cooling and temperature reduction
5 Medical treatment and medicine
6 Cooling, temperature reduction and preservation, etc.
7 Cold storage central air conditioner
8 Cold water temperature reduction system

Plate ice machine conditions
Electrical require:        Full electric system complying
 With the general international standard
Standard condilion:     Water inlet temp.16°C Amibenttemp. 25°C
Application condilion: Ambient temp.5°C~40°C water temp. 5°C~35°C

Special condition:         Ambient temp.-30°C~60°C water temp.5°C~46°C
Ice thickness:                10~12mm
Refrigerant:                     R717,R22 ,R404A,R507A

 Plate ice machine evaporator feature

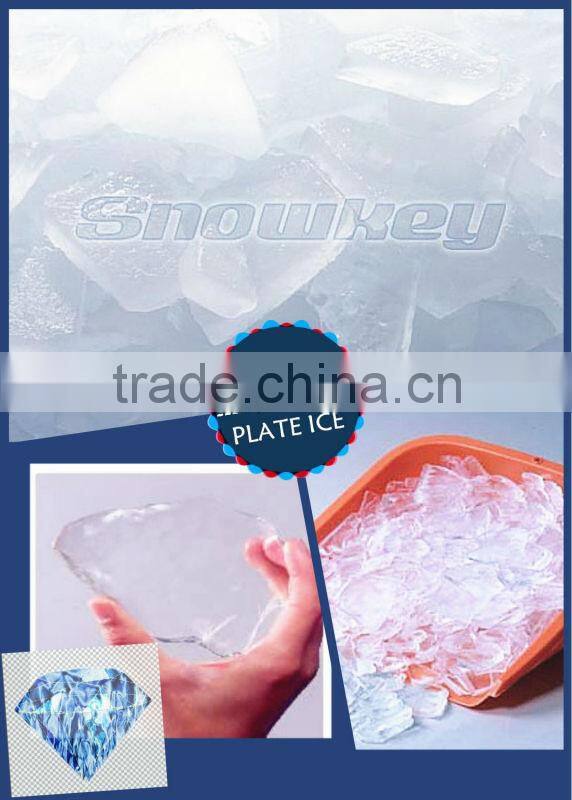

1.SNOWKEY plate ice ranges from 5mm to 30mm (wherein, 15mm to 30mm is specially designed) in thickness and 20mm to 50mm in width and has no fixed shape. Its thickness and width maybe freely adjusted according to use.
2.SNOWKEY plate ice boasts even cooling effect, good ventilation, and even constant refrigeration temperature. So it is very suitable for refrigerating aquatic products.
3.As transparent crystal, SNOWKEY plate ice doesn't melt easily, so it can be stored for a longer time. Ordinary ice is opaque since it contains air bubbles and impurities and is small in density, soft in texture and likely to melt. However, SNOWKEY plate ice is pure in color and luster, hard, transparent, dry and powerless. Due to small surface area, it achieves better cold storage effect and spends 30% more time in melting than other types of ice.
4.SNOWKEY plate ice fully conforms to the certification requirements of HACCP and FDA. It can be applied to such fields as ice cold storage air conditioners, edible ice, aquatic foods, chemical industry, etc.
