Plate Ice Making Machine

Specifications

 Plate ice machine applications

1 Aquatic product processing, cooling,preserving and transportation
2 Edible ice making factory
3 Port ice making factory
4 Chemical projects and dye cooling and temperature reduction
5 Medical treatment and medicine
6 Cooling, temperature reduction and preservation, etc.
7 Cold storage central air conditioner
8 Cold water temperature reduction system


Plate ice machine conditions
Electrical require:        Full electric system complying
 With the general international standard
Standard condilion:     Water inlet temp.16°C Amibenttemp. 25°C
Application condilion: Ambient temp.5°C~40°C water temp. 5°C~35°C

Special condition:         Ambient temp.-30°C~60°C water temp.5°C~46°C
Ice thickness:                10~12mm
Refrigerant:                     R717,R22 ,R404A,R507A

 Plate ice machine evaporator feature

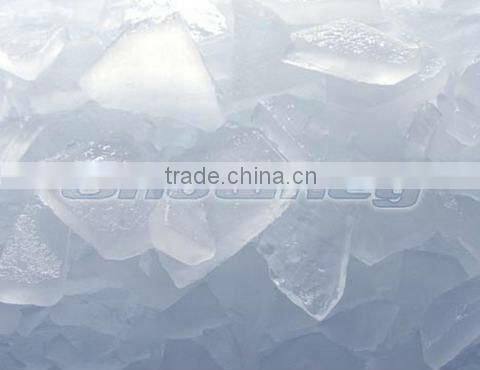

1.SNOWKEY plate ice ranges from 5mm to 30mm (wherein, 15mm to 30mm is specially designed) in thickness and 20mm to 50mm in width and has no fixed shape. Its thickness and width maybe freely adjusted according to use.
2.SNOWKEY plate ice boasts even cooling effect, good ventilation, and even constant refrigeration temperature. So it is very suitable for refrigerating aquatic products.
3.As transparent crystal, SNOWKEY plate ice doesn't melt easily, so it can be stored for a longer time. Ordinary ice is opaque since it contains air bubbles and impurities and is small in density, soft in texture and likely to melt. However, SNOWKEY plate ice is pure in color and luster, hard, transparent, dry and powerless. Due to small surface area, it achieves better cold storage effect and spends 30% more time in melting than other types of ice.
4.SNOWKEY plate ice fully conforms to the certification requirements of HACCP and FDA. It can be applied to such fields as ice cold storage air conditioners, edible ice, aquatic foods, chemical industry, etc.

Plate ice machine evaporator feature

Plate ice evaporator mainly fall into two kinds, namely, aluminium alloy plate ice evaporator and stainless steel plate ice evaporator. Plate ice evaporator adopts direct expansion systems and use R-22, R507A, R404A or ammonia (NH3) as the cooling medium.
1 Evaporator manufactured with special technologies
The 735mm*1445mm large-sized evaporator is manufactured of pure stainless steel with the world's most sophisticated laser-welding technologies. It boasts such advantages as sanitation, cleanness and no harm to human body, etc. It fully conforms to the certification requirements of HACCP and FDA and can be applied to the fields in relation to edible ice. It contains a number of evaporators in parallel connection and can produce 500kg to 600 tons of ice per day. Water circulation system Aluminium plate ice evaporator Stainless steel plate ice evaporator.

2 Special water circulation system
The raw material water flows evenly on the surface of the evaporator, and gathers into the water tank through the special water trough at the bottom of the evaporator. Then the water is pumped to the water distributor in the top of the evaporator and returns to the surface of the evaporator to freeze. The said special water circulation system makes the surface of plate ice produced very smooth.

3 Mode of peeling ice at a high speed and without additional heat
It's unnecessary to introduce hot gas from outside since the hot Freon gas produced by the plate ice machine itself is fed into the plate ice evaporator. Then within less than 1 minute the plate ice that has already taken shaped falls down and breaks becaus e of the pull of gravity.

4 Modular design
The machine body adopts steel welding and galvanized structure, which boasts anti-corrosion, high stability, and can ensure good running in various hard working conditions. The machine service life is thus proIonged,and the maintenance cost is accordingly reduced.
