hot sale of plastic mannequins making machine made in China
- shanghai
- T/T
You May Like
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Jiangsu, China | |
| Brand Name | plastic mannequins | Model Number | plastic mannequins | |
| Voltage | 380v or 415v | Power(W) | 35kw | |
| Dimension(L*W*H) | 3.6*1.8*2.8m | Weight | 6.3ton | |
| Certification | ce, iso | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
plastic mannequinsadvanced technology
good qualiy
competive price
save energy
plastic mannequins making machine
Technical Parameters: ( ABLB75 )
Max. Product volume | 8 liters |
Output capacity | 120pcs/h |
Screw diameter | 75mm |
Screw L/D ratio | 24 L/D |
Screw drive power | 22 KW |
Screw heating capacity | 6 KW |
No.of heating zone | 4 zones |
Output of HDPE | 100KG/H |
Oil pump drive power | 11 KW |
Clamping force | 78KN |
Max.size of mold | 188-600mm |
Mold stroke | 400 X 450mm |
Max.die diameter | 180mm |
Blowing pressure | 0.6 mpa |
Air Volume | 0.7 M³/MIN |
Cooling water pressure | 0.3mpa |
Water consumption | 60 L/MIN |
Size of Machine | 3.6x1.8x2.8m |
Weight of machine | 6.3 ton |
HDPE bottle making machine
Payment Info.
Advising bank: UAgricultural Bank of China, Suzhou Branch
Account No: 10525814040010761
Swift Code: ABOCCNBJ103
Beneficiary: Zhangjiagang Apollo Machinery Co., Ltd
DELIVERY:
Delivery no later than 45 days, after we received the deposit.
Packing:
Standard export packing for sea freight by 40’ CY
WARRANTY:
We warranty the quality of this machine for 12 months ,if there is any problem with the machine ,or any main parts are broken,we will repair it or replace new for free.
TRAINNING:
The seller should train two or three operating man for free. (Travel and hotel is by buyer’s expenses.)
INSTALLATION AND TEST
The buyer should place the machine to the right position and inform the supplier after the machine reach the buyer’s factory. The seller will send the engineer to test run the machine until it is running in normal state. The buyer will bear his round-trip air tickets, accommodation, and hotel and so on in BUYER’S side. And the buyer will pay USD40/day/person as technician labor cost when he leaves factory until leave client’s plant.

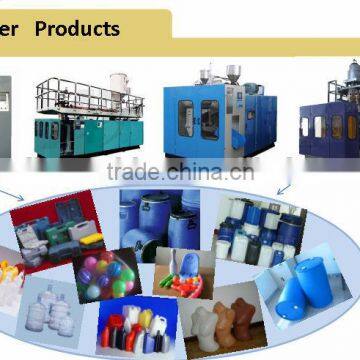

more pics about us
