Home > Products > New Products > 30~50L Plastic Bottle blow moulding machine

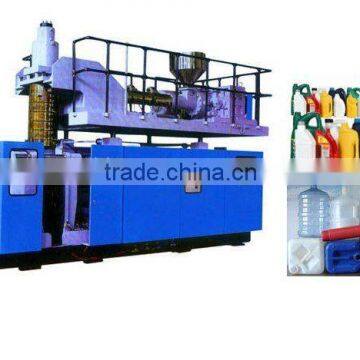

30~50L Plastic Bottle blow moulding machine
- Shanghai or Ningbo
- T/T
You May Like
-
Full auto blow molding machine
-
4 gallon 5 gallon PC bottle blow molding machine pure water bottles making machine
-
CE proved 20L Plastic Bottles/jerry cans Making Machine HDPE
-
Full-auto extrusion blow molding machine
-
1L2L3L 5L PE bottles making machine blow moulding machines
-
10~20L4gallon PE PP bottles/jerry cans blow molding machine CE proved
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Jiangsu, China | |
| Brand Name | APOLLO | Model Number | ABLD90 |
Product Description
Specifications
30~50L Plastic Bottle blow moulding machineEnergy saving type
Full auto control by PLC
CE standard approved
Free service
30~50L Plastic Bottle blow moulding machine
ABLD90 high speed full automatic blow molding machine is suitable for various kinds of plastic bottles in all shapes from 30L to 50L.It is widely used to produce tool boxes and big volume bucket,plastic boards and related containers.Equipment with sevo parion control system can control the thickness of the product precision to 1/1000mm. It can also meet the requirement of different thickness of plastic.
Easy to operate,saved labor cost,saved enery,high efficiency to promote your productivity
You can regain the machine cost with 1-2 years.
The machine looks neat and nice
Perfect function with economic investment.
For more information,don't hesitate to contact us.
Main Technical Parameter
Max. Product volume | 50 liters |
Dry cycle | 450pc/h |
Screw diameter | 90mm |
Screw L/D ratio | 25 L/D |
Screw drive power | 37 KW |
Screw heating capacity | 18 KW |
No.of heating zone | 4 zones |
Output of HDPE | 130 KG/H |
Oil pump drive power | 30 KW |
Clamping force | 260 KN |
Max.size of mold | 700X950mm |
Mold stroke | 450-1000mm |
Max.die diameter | 340mm |
Die heating power | 7.6 KW |
Die heating segments | 4 zones |
Blowing pressure | 0.8mpa |
Air volume | 1.0 M³/MIN |
Cooling water pressure | 0.3mpa |
Water consumption | 90 L/MIN |
