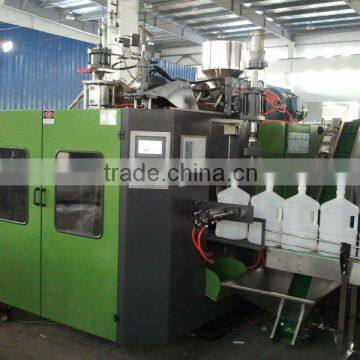

CE proved Automatic 4 gallon bottles blow moulding machine water gallons making machine
Negotiable
/ Set
1 Set(Min.Order)
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Jiangsu, China | |
| Brand Name | Apollo | Model Number | ABLB90 |
Product Description
Specifications
Automatic 4 gallon bottles blow moulding machineMax volume 20L
adopt Japan&Taiwan technology
High quality assurance
CE
ABLB90 auto plastic can making machine was specially designed for making plastic water tanks,plastic cans, lubricant oil bottles,plastic drums, plastic toys and other plastic containers not over 20L.
The features of this machine:
(1)It is suitable for producing PE,HDPE,PP, PVC so on,plastic containers and bottles in all shapes are available,the duct volume is up to 20L.
(2)Single station single die head design,very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption,high efficiency,quick and safe operation,easy for maintenance.
(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available,can remove the extra parts of bottles.
(7)Auto lubricant system controlled by PLC.
(8)Special screw cutting device available for meeting different demands.
The main components of the machine. ( ABLB90 )
electronic parts | |
Name | Trader |
Micro computer control system | Japanese MITSUBISHI |
Temperature Controller | TAIWAN YANHUA PID |
Auxiliary Relay | OMRON |
contactor | Schneider from France |
Electric motor | Three phase 220V or 380V |
Power Source | TAIWAN MEANWELL |
Transducer | TAIDA FROM CHINA |
hydraulic parts | |
Name | Trader |
Oil pump | TAIWAN HIGH-TECH |
Valve | JAPAN YUKEN |
Oil pump and connection | JAPAN YUKEN |
Sealed part | HALLITE |
air control system | |
Name | Trader |
Cylinder | AIRTAC |
Air Valve | FESTO |
Technical Parameters: ( ABLB90 )
Max. Product volume | 20 liters |
Output capacity | 70~90pc/h |
Screw diameter | 90mm |
Screw L/D ratio | 24 L/D |
Screw drive power | 37KW |
Screw heating capacity | 8 KW |
No.of heating zone | 4 zones |
Output of HDPE | 120KG/H |
Oil pump drive power | 11 KW |
Clamping force | 120 KN |
Max.size of mold | 530-X 550mm |
Mold stroke | 240 -660mm |
Max.die diameter | 200mm |
Blowing pressure | 0.8 mpa |
Air Volume | 1 M³/MIN |
Cooling water pressure | 0.3mpa |
Water consumption | 90 L/MIN |
Size of Machine | 4.0x2.6x3.1m |
Weight of machine | 9.3ton |
