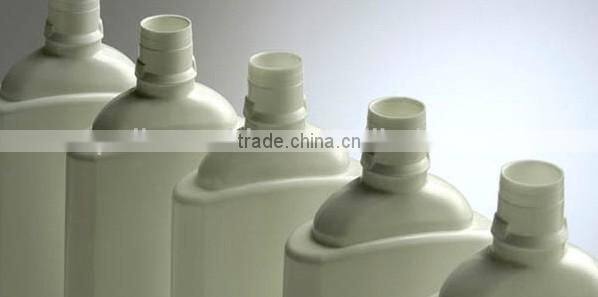

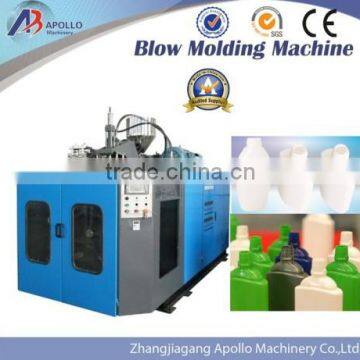

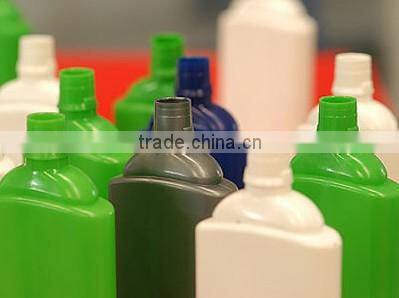

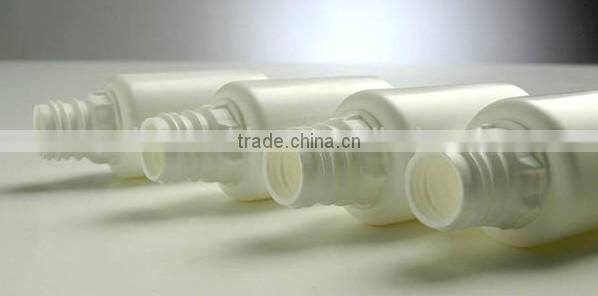

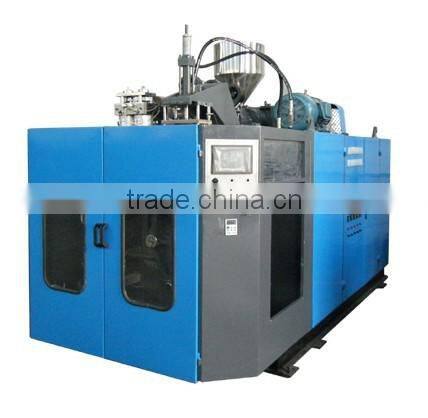

5ml~2L Plastic Cosmetic Bottles Small Blow Molding Machine

Main parts of Machine


Explanation

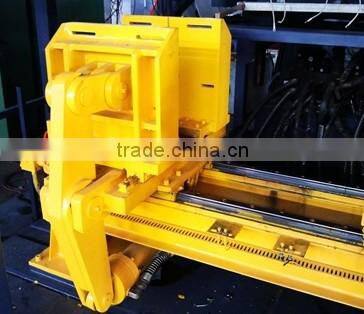

Mould Open and Close machanism

Single station

Open and close the mould

Oil Pump

Oil pump From TaiWan JinShun use to drive the    machine

Computer control system (PLC)

Japanese Mitisubishi PLC

Used to control all electrial components and touch screen

Screw and fan

Screw diemeter

45mm

  Fan used to cool the screw.

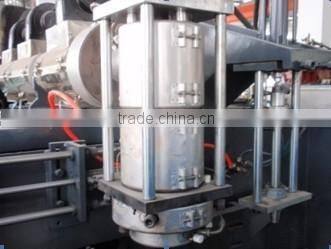

Die head

Double die heads available

More fast and reliable output

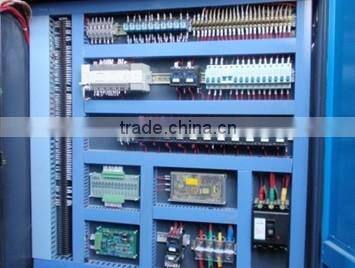

Electric Cabinet

This part is the full electric components of the machine

electronic parts

Name

Trader

Micro computer control system

Japanese MITSUBISHI

Temperature Controller

TAIWAN YANHUA  PID

Auxiliary Relay

OMRON

contactor

Schneider from France

Electric motor

Three phase 220V or 380V

Power Source

TAIWAN MEANWELL

Transducer

TAIDA FROM CHINA

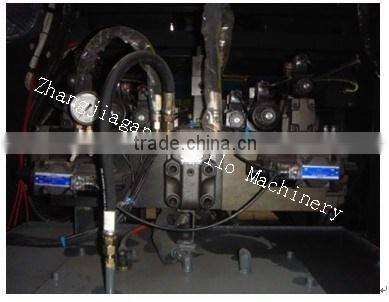

hydraulic parts

Name

Trader

Oil pump

TAIWAN HIGH-TECH

Valve

JAPAN YUKEN

Oil pump and connection

JAPAN YUKEN

Sealed part

HALLITE

air control system

Name

Trader

Cylinder

AIRTAC

Air Valve

FESTO

Max. Product volume

2L

Out put capacity

500~600pcs/h

Screw diameter

45mm

Screw L/D ratio

24:1  L/D

Screw drive power

10 KW

Screw heating capacity

2.6 KW

No.of heating zone

3 zones

Output of HDPE

35 KG/H

Oil pump drive power

4.8 KW

Clamping force

32KN

Max.size of mold

80-350mm

Mold stroke

250 X 320mm

Max.die diameter

80mm

Blowing pressure

0.6 mpa

Air Volume

0.4M³/MIN

Cooling water pressure

0.3mpa

Water consumption

30 L/MIN

Size of Machine

2.6x1.4x2.2m

Weight of machine

2.8 ton
