120L-220L Ful-auto Plastic Drum Blow Molding Machine
- FOB SHANGHAI
- T/T
You May Like
-
220l Double L-ring Plastic Drum Making Machine
-
220L Oil Drums Extrusion Blowing Mold Machine/drums Extrusion Machine
-
PP Bottle Making Machine Extrusion Blowing Mold Machine
-
Extruding Machine for Blowing 220L Water Drums
-
220L Oil Drums Extrusion Blowing Mold Machine/plastic Drum Blow Molding Machine
-
220L Drum Blow Molding Machine/220 Litre Plastic Drum Blow Molding Machine
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Jiangsu, China | |
| Brand Name | APOLLO | Model Number | ABLD120 | |
| Certification | CE | Warranty | One year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
blow molding machine1,CE Certification
2,Advanced technology
3,Good after-sale service
4,Competitive price
ABLD120 automatic blow molding machine was specially designed for making plastic water tanks,plastic cans, lubricant oil bottles,plastic drums, plastic toys and other plastic containers not over 160L.
The features of the blow molding machine:
(1)It is suitable for producing PE,HDPE,PP, PVC so on,plastic containers and bottles in all shapes are available,the duct volume is up to 160L.
(2)Single station single die head design,very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption,high efficiency,quick and safe operation,easy for maintenance.
(5)Accumulation die head,MOOG parison controller equipped.
(6)Bottom blow technology make the product perfect.
(7)Auto lubricant system controlled by PLC.
Main parts of Machine | Picture | Explanation |
Oil Pump |
|
Oil pump From Japan YUKEN driving the machine |
Computer control system (PLC) |
|
Japanese Mitisubishi PLC
Used to control all electrial components and touch screen |
Parison controllor |
|
MOOG parison Controllor Control the thickness of products |

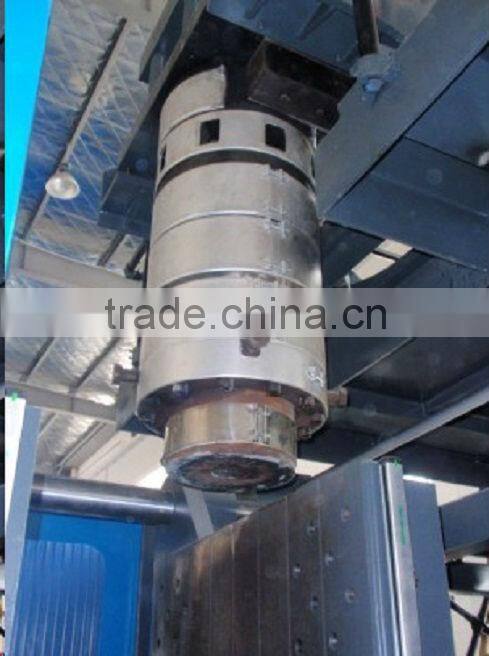

Die head |
|
Accumulation die head |

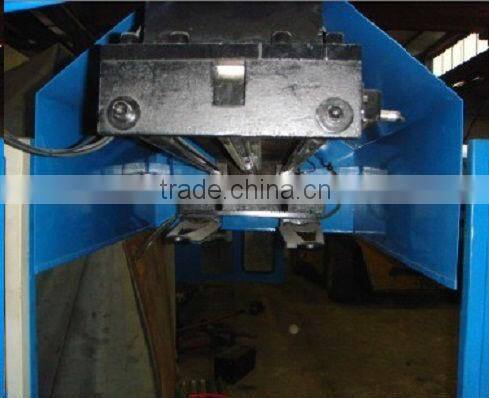

Manipulator |
|
Manipulator will Take the finished Product out automatically |
Electric Cabinet |
|
This part is the full electric components of the machine |
Technical Parameters: ( ABLD120 )
Max. Product volume | 160 liters |
Output capacities | 18~25 pcs/h |
Screw diameter | 120mm |
Screw L/D ratio | 28 L/D |
Screw drive power | 75 KW |
Screw heating capacity | 30 KW |
No.of heating zone | 5 zones |
Output of HDPE | 240 KG/H |
Oil pump drive power | 45 KW |
Clamping force | 800 KN |
Max.size of mold | 1000X1500mm |
Mold stroke | 600-1500mm |
Max.die diameter | 520mm |
Die heating power | 12 KW |
Die heating segments | 5 zones |
Blowing pressure | 0.8mpa |
Air volume | 1.6 M³/MIN |
Cooling water pressure | 0.3mpa |
Water consumption | 180 L/MIN |
