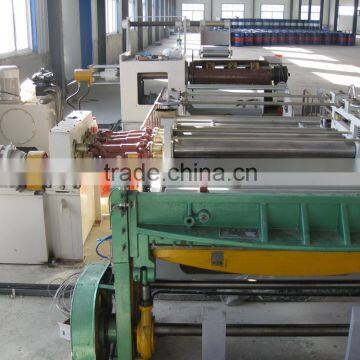

200L steel drum / steel barrel production line

Specifications

200L steel drum / steel barrel production line

• Edge Machine

        Short introduction:Controlled by PLC,hydraulic drive,equipped with linear rolling guide.

        Main technics:

        a)Edging height:18.5mm

        b)Drum height:894-905(mm)

        c)Hydraulic system pressure:8Mpa

        d)Air pressure:0.1Mpa

        e)Machine size:3440x830x1700(mm),Total weight: 5T

        Hydraulic station: a)Machine size:1800x860x1700(mm)

                                    b)Total weight: 1T

                                    c)Motor power: 22KW

•  Beading Machine

         Short introduction:controlled by PLC,hydraulic drive,equipped with linear rolling guide,speed control value control

                                     the box feeding.

          Main technics:

          a)Beading height:≤14mm

          b)Drum height:894-905(mm)

          c)Hydraulic system pressure:8Mpa

          d)Air pressure:0.1Mpa

          e)Machine size:3700x700x1600(mm),Total weight: 5.5T

          Hydraulic station:     a)Machine size:1800x860x1700(mm)

                                          b)Total weight: 1T

                                          c)Motor power: 22KW

•  Corrugating Machine

           Short introduction:controlled by PLC,hydraulic drive,equipped with linear rolling guide,speed control value control

                                       the box feeding.

          Main technics:

          a)Corrugating height:≤3mm

          b) W rib height:≤9mm

          c)Drum height:884-895(mm)

          d)W rib space:280mm

          e)Motor power:11KW

          f)Machine size:4500x650x2100(mm),Total weight: 7T

          Hydraulic station: a)Machine size:1800x860x1700(mm)

                                      b)Total weight: 1T

                                      c)Motor power: 7.5KW

•   Edge-Curling Machine

           Short introduction:controlled by PLC,hydraulic drive,7 layers edge curling,equipped with linear rolling

                                       guide,reducer with frequency and on-off control the cam working.

          Main technics:

          a)Drum height:886-897(mm)

          b)Motor power:45KW

          c)Machine size:4800x1300x2200(mm),Total weight: 13T

          Hydraulic station: a)Machine size:1800x860x1700(mm)

                                      b)Total weight: 1T

                                      c)Motor power: 7.5KW
