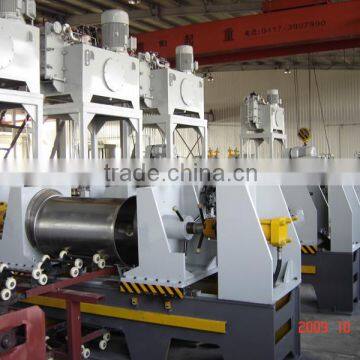

Steel drum and manufacturing plant production line (Medium speed) and metal barrel

Main technics :

a) Edging height: 18.5mm

b) Drum height: 894-905mm

c)Hydraulic system pressure:8Mpa

d) Air pressure:0.1Mpa

e) Machine size: 3440x830x1700(mm)

f) Total weight: 5T

Hydraulic station:

                     a)Machine size:1800x860x1700(mm)

                     b)Total weight: 1T

                     c)Motor power: 22KW

Short introduction: Controlled by PLC,hydraulic drive

Main technics :

a) Beading height:≤14mm

b) Drum height: 894-905mm

c)Hydraulic system pressure:8Mpa

d) Air pressure:0.1Mpa

e) Machine size: 3700x700x1600(mm)

f) Total weight: 5T

Hydraulic station:

                     a)Machine size:1800x860x1700(mm)

                     b)Total weight: 1T

                     c)Motor power: 22KW

Short introduction: controlled by PLC,hydraulic drive

Main technics :

a) Corrugating height: ≤3mm

b) W rib height: ≤9mm

c) Drum height: 884mm-895mm

d) W rib space: 280mm

e) Motor power: 11KW

f) Machine size: 4500x650x2100(mm)

g) Total weight:7T

Hydraulic station:

                     a)Machine size:1800x860x1700(mm)

                     b)Total weight: 1T

                     c)Motor power: 7.5KW

Short introduction: controlled by PLC,hydraulic drive

Main technics :

a) Drum height: 886mm-897mm

b) Motor power: 45W

C) Machine size: 4800x1300x2000(mm)

g) Total weight: 13T

Hydraulic station:

                     a)Machine size:1800x860x1700(mm)

                     b)Total weight: 1T

                     c)Motor power: 7.5KW

Short introduction: controlled by PLC,hydraulic drive,7 layer edge curling.

Main technics :

a) Testing drum diameter: 560mm-570mm

b) Testing drum height: 886mm-897mm

C) Pressure: 0.03Mpa

g) Machine size: 2530x700x1100(mm)

Short introduction: Manual/automatic control,pneuma lock.

Main technics :

a) Motor power:7.5KW

b) Machine size:800x800x1500(mm)

c) Total weight: 0.5T

Short introduction : Provide oil for the oil cylinder of decoiler, lifting device,

uncoiling supporter,and overturn machine to make sure stably working.

Main technics :

a) Machine size:800x450x1600(mm)

b) Total weight: 0.5T

Short introduction : control the uncoiling,cutting plate, visible handling of

touch screen,improve precision of the cutting sheet, controlled by PLC.

Main technics :

a) Motor power: 4KW

b) Machine size: 11000x2100x1000(mm)

c) Total weight: 3T

Short introduction:Convey the drum body to be edged,beaded,Corrugated

W rib reinforced and sealed bottom cover with PLC controlling.
