PRO PU-F2008 PU Foam Spray Forming Machine Or Molding Machine

BHPU-F2008 Polyurethane Spray and Perfusion Equipment

Standard Configuration:

Mainframe:

1 set

Spray gun:

1set

Heating and preserved pipe:

15m

Connecting pipe for spray gun:

1.5m

Max. Pipe length:

90m(optional)

Transfer pump:

2 sets

Technical Parameter:

Power Source:

380V 50/60Hz 3 Phases

Air Source:

0.5~0.8Mpa (70~120psi) ≥0.9m³ /min

Output:

4~8kg/min

Heating device power for material:

3000W X 2(or optional: 4500W X 2)

Heating power for pipe heating:

3500w

Single component output pressure:

5~10Mpa (700~1500psi)

Heat temperature:

80°C

Shipping Parameter:

Weight:

125kg

Volume:

800x 700x1100(mm)

Features and Usage:

1. BHPU-F2008 Polyurethane Spray and Perfusion Equipment is as a special one, this type of machine gives you more choice because there are double spray guns with different Size. The function of Spray and Perfusions can be changed mutually, operating the machine more easily, because you should only change the spray gun.

2. Strong guidance, automatic reset device. After one day's work, through the operation can make the material pump reset to the next point, prolong the service life of the seal material.

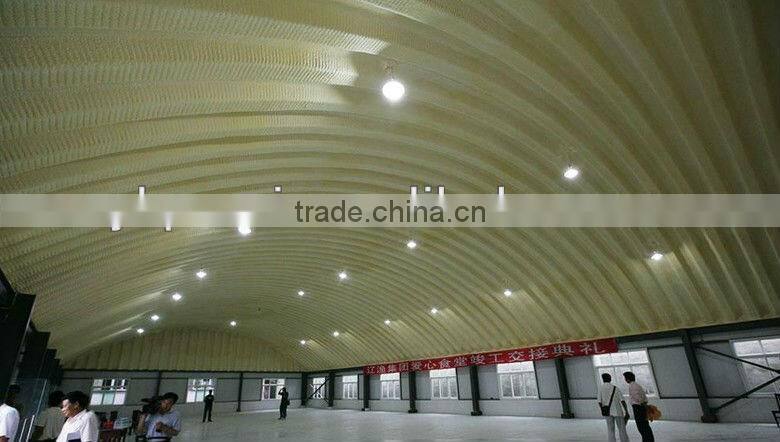

3. BHPU-F2008 is widely used, such as Refrigerator heat preservation, Building exterior, Roof warm keeping and waterproof, Sports venues, Air-condition insulation, automobile and naval vessels, solar water heater, etc
