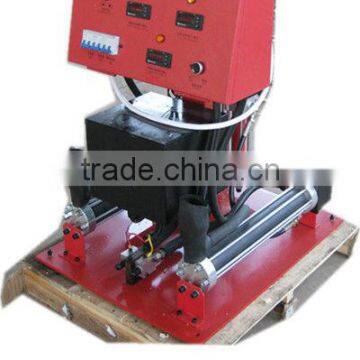

PR PU-III Polyurethane Spray and Perfusion Equipment

FOB Price

USD $10 - $100,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Liaoning, China		Brand Name	PR
Model Number	PR109		After-sales Service Provided	Engineers available to service machinery overseas

1.Max. Pipe length:45m(optional)
2.Power Source:380V 50/60Hz 3 Phases
3.Output:8kg/min
4.Transfer pump:2 sets

PR PU-III Polyurethane Spray and Perfusion Equipment

PRPU-III Polyurethane Spray and Perfusion Equipment
Standard Configuration:
Mainframe:	1 set
Spray gun:	1set
Heating and preserved pipe:	15m
Connecting pipe for spray gun:	1.5 m
Max. Pipe length:	45m(optional)
Transfer pump:	2 sets
Technical Parameter:
Power Source:	220v, 7000w 50HZ
Air Source:	7~11kg/ cm²0.9m³ /min
Output:	8kg/min
Heating device power for material:	2250w x2
Heating power for pipe heating:	2000w
Single component output pressure:	75-90kg/cm²
Shipping Parameter:
Weight:	150kg
Volume:	800x 700x1100(mm)
Features
PRPU-III High-pressure Polyurethane Spray and Perfusion Equipment .The parts of the equipment are from America making sure the pressure is enough for mixing the double component materials together. It has the separate heater which is 2500 watt;Provides the reliable heat source for the row materials solving the problem of the viscosity of the materials. The pipe of heating and preserved is 15 meters and it preserves the heat energy of the materials. The system of spray gun with non-solvents washing makes the machine easy to operate, and maintain.
