PR Building Machine or PU Foam Machine
- Dalian
- T/T L/C D/P D/A
You May Like
-
PR PU-P2008 Polyurethane Spray and Perfusion Equipment
-
PRO PU-F2008 Spray Foaming Machine
-
PU-IIIB235 Polyurethane Spray and Perfusion Equipment
-
PRO PU-F2008 PU Foam Spray Forming Machine Or Molding Machine Or Polyurethane Spay Machine
-
PR PU-III Polyurethane Spray and Perfusion Equipment
-
PR Building Machine or PU Foam Machine
Product Details
| Place of Origin | Liaoning, China | Brand Name | PR | |
| Model Number | PR109 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Controlling system: PLC&Manual2.Largest span: 42m
3.Sheet operating factor: 51%
4.Step of rollers: 14 steps
PR building machine or PU foam machine
Technical Parameter: | |
Mainframe: | 1 set |
Spray gun: | 1set |
Pump: | 2set |
Pouring time: | 99.9S |
Temperature control: | ≤25°C |
Heating and preserved pipe: | 5m |
Power of pump: | 740W,1400r/min |
Air Pump: | 0.6Mpa-0.8Mpa |
Power Source: | 380v, 50HZ,3PHASE |
Usage: | |

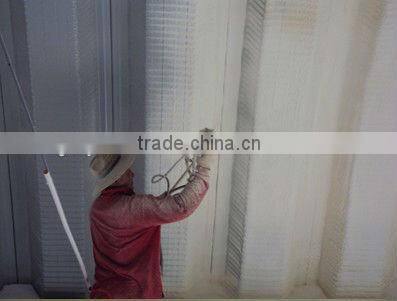

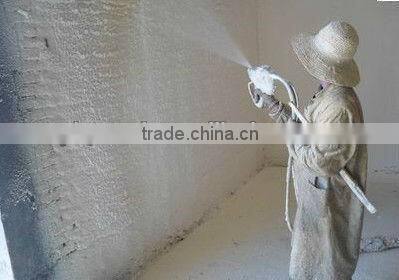

1. This machine has one tank separated by left side and right side. The insulation material from two independent tanks flows into two sets of piston dosing pump. 2. Setting up the motor, two sets of piston dosing pump working, the black and white liquid mixed together under certain ratio. 3. And by the compressed air into the shower nozzle, with the mixed liquid changing into the atomizing material, then this material jet to the roof through the spray nozzle, thus completing spraying foam. | |
BHPU-III foam machine
Standard Configuration:
Mainframe: 1 set
Spray gun: 1set
Heating and preserved pipe: 15m
Connecting pipe for spray gun: 1.5m
Max. Pipe length: 45m (optional)
Transfer pump: 2 sets
Technical Parameter:
Material ratio: 1:1 (fixed)
Power Source: 220v, 7000w 50HZ single phase electric(or according to your requirement)
Air Source: 7~11kg/ cm2 0.9m3 /min
Purging: Automatic pneumatic, solvent-free
Output: 8kg/min
Heating device power for material: 2250w x2
Heating power for pipe heating: 2000w
Single component output pressure: 75-90kg/cm2
Heat temperature: 50-60°C
Shipping Parameter:
Weight: 150kg
Volume: 800x 700x1250(mm)
