Advanced High Pressure Injection Moulding Automatic Pu Foam Spray Machine

Professional Pu Polyurethane Foam Injection Machine

Yingkou Professional Roll Forming Machine Co., Ltd.is a professional manufacture of roll forming machine. We can instruct clients to do projects, offer technical support for clients, including project design, drawing supplied and engineer supplied. Clients who purchase our equipments can create largest profit space.

Our main products are:   PU Spray and Perfusion Equipment,  Steel-drum production line, Steel drum, PRO-240/PRO-120 Arch sheet roll forming machine, Multi-shape Building Machine, Screw-jointed Equipment, KR Series Roll Forming Machine,Glazed Tile Roll Forming Machine, Double Layer Roll Forming Machine, 840 Corrugated Sheet Roll Forming Machine,Corrugated Roof Sheet Forming Machine, Concealed Roof Sheet Forming Machine, Steel Decking Roll Forming Machine,C/Z/U/M Shaped Steel Purlin Forming Machine, Highway Guardrail Roll Forming Machine, Sandwich Panel Roll Forming Machine, Lifting Machine, Unlimited Length Ridge Tile Forming Machine, Sheering Machine, Window and Door Taping Machine, Flat Sheet Bending Machine, Pipe Bender Machine, Bending Machine, Slitting Machine, Slitting Line, SM-40 Spiral Steel Silo Forming Machine,  Colored Steel Sheet Coils, etc.

NO.1  YKPROPU-III High-pressure Polyurethane Spray and Perfusion Machine

l Standard Configuration

  1.Mainframe: 1 set

  2.Spray gun:1set

  3.Heating and preserved pipe:15m

  4.Connecting pipe for spray gun: 1.5m

  5.Max. Pipe length: 45m (optional)

  6.Transfer pump: 2 sets

l Technical Parameter

  1.Material ratio: 1:1 (fixed)

  2.Power Source:220v, 7000w 50HZ single phase electric(or according to your                requirement)

  3.Air Source: 7~11kg/ cm²   0.9m³/min

  4.Purging: Automatic pneumatic, solvent-free Output: 8kg/min

  5.Heating device power for material:2250w x2

  6.Heating power for pipe heating:2000w

  7.Single component output pressure:75-90kg/cm²

  8.Heat temperature:50-60℃

  9.Weight: 150kg

10.Volume: 800x 700x1250(mm)

NO.2 YKPROPU-F2008 High-pressure Polyurethane Spray and Perfusion Machine

l Standard Configuration

  1.Mainframe: 1 set

  2.Spray gun: 1set

  3.Heating and preserved pipe: 15m

  4.Connecting pipe for spray gun: 1.5m

  5.Max. Pipe length: 90m (optional)

  6.Transfer pump: 2 sets

l Technical Parameter

  1.Material ratio: 1:1 (fixed)

  2.Power Source: 380V 50/60Hz 3 Phases electric(or according to your                            requirement)

  3.Air Source: 0.5~0.8Mpa (70~120psi) ≥0.9m³ /min

  4.Purging: Automatic pneumatic, solvent-free

  5.Output: 4~8kg/min

  6.Heating device power for material: 3000W X 2(or optional: 4500W X 2)

  7.Heating power for pipe heating: 3500w

  8.Single component output pressure: 5~10Mpa (700~1500psi)

  9.Heat temperature:80℃

10.Weight: 120kg

11.Volume: 800x 700x1250(mm)

NO.3 YKPROPU-IIIB235 High-pressure PU Spray and Perfusion  Machine

l Standard Configuration

  1.Mainframe: 1 set

  2.Spray gun: 1 set

  3.Heating and preserved pipe: 15m

  4.Connecting pipe for spray gun: 1.5m

  5.Transfer pump: 2 sets

l Technical Parameter

  1.Electrical source: 220v 7000w

  2.Air source: 0.5~0.8Mpa (70~120psi) ≥ 0.9m3/min

  3.Output: 2~6.8kg/min

  4.Heating device power for material: 2500w ×2

  5.Heating power for pipe heating: 2000w

  6.Single component output pressure: 5~10Mpa (700~1500psi)

  7.The range of the ratio: 1:1~2:1

  8.Weight: 200kg

  9.Volume: 800x800x1200(mm)

NO.4 YKPRO Spray Gun

l Technical Parameter

  1.Blending: Inner vacuum blending

  2.Functionality: Spray or Perfusion

  3.Cleaning: Continuously air cleaning can eliminate the jam issue. There is no need          for concern of solidifying due to on-off the spray gun

NO.5 YKPRO Feeding Material Pumps

l Technical Parameter

  1.Max. Fluid temperature: 88℃

  2.Pressure ratio: 11.5:1

  3.Dia.of air motor: 152.4mm

  4.Size of air inlet: ZG1/2

  5.Size of fluid outlet: ZG3/4

  6.Pressure range of air motor: 0.2-0.8Mpa

  7.Max. fluid pressure: 9.2Mpa

  8.Max. Output (wide open):26KG

  9.Max. Ambient temperature: 50℃

10.Length: 1456mm

11.Weight: 19.5KG

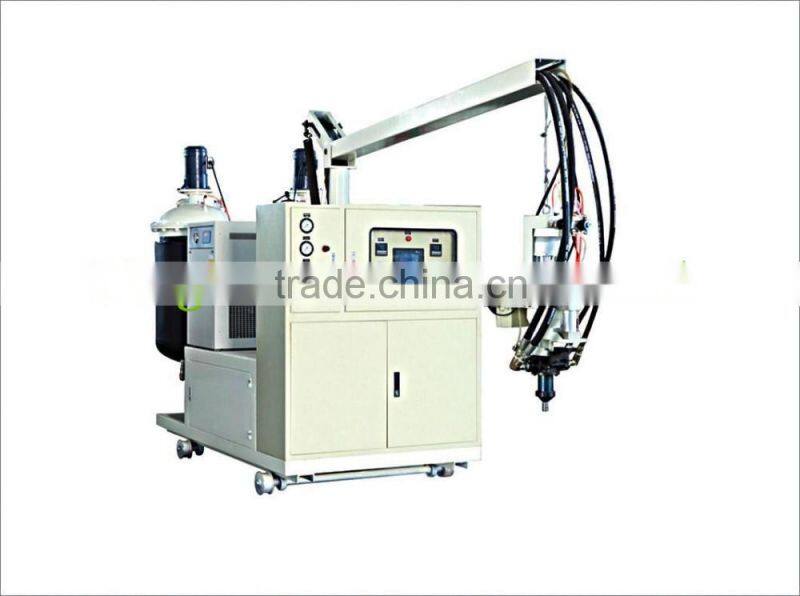

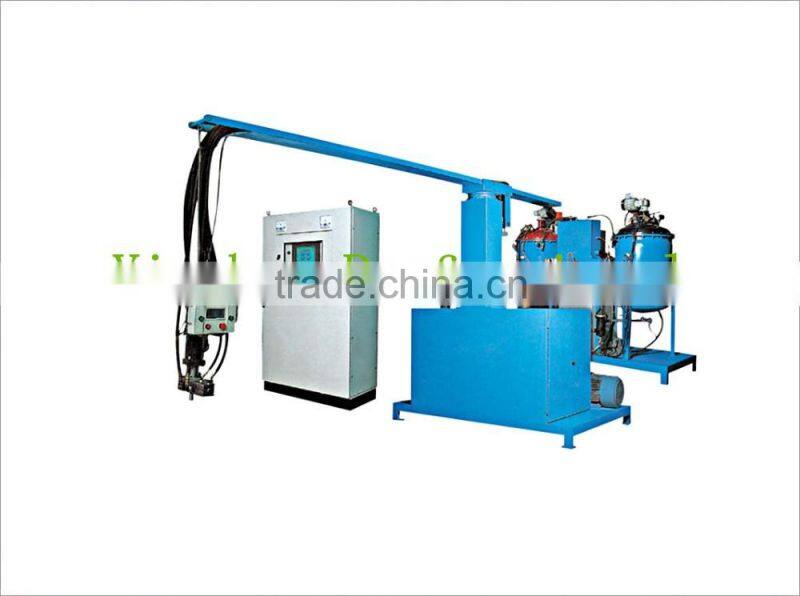

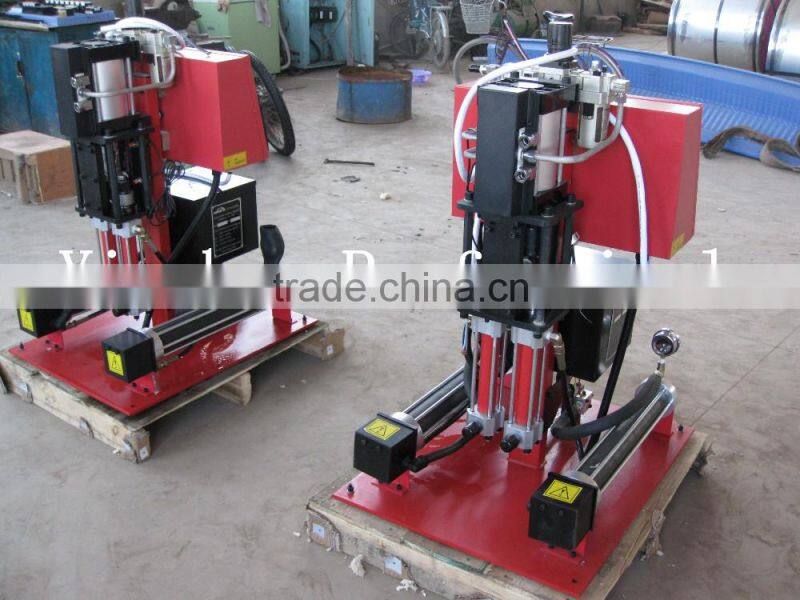

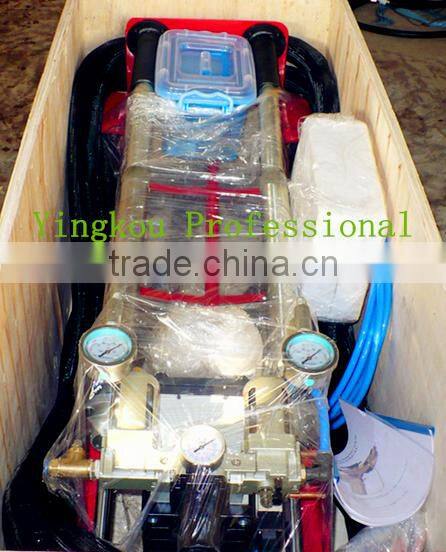

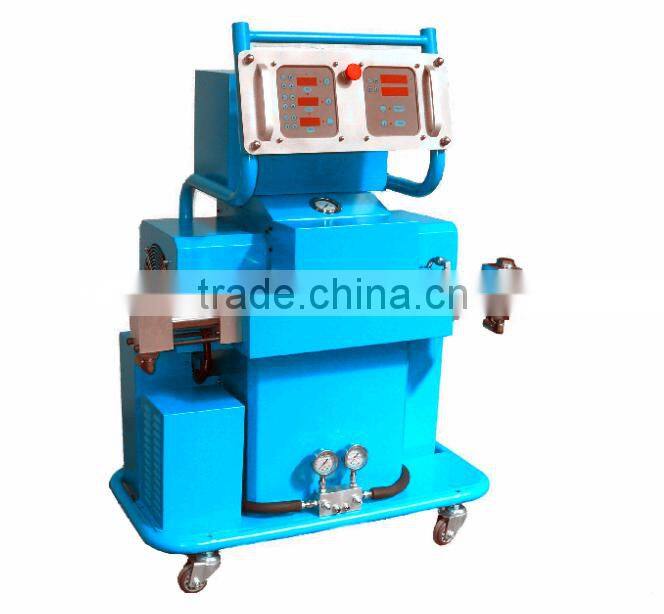

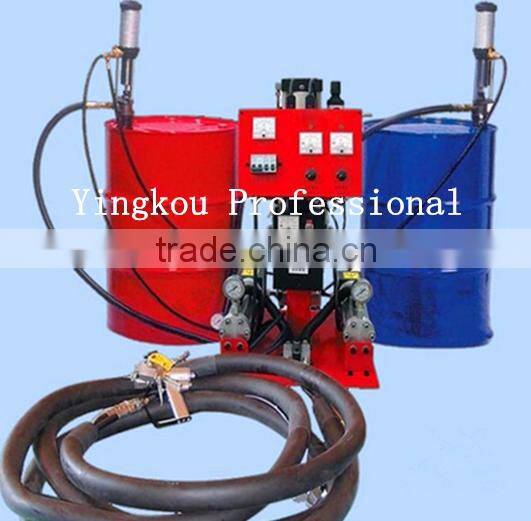

l   Machine picture

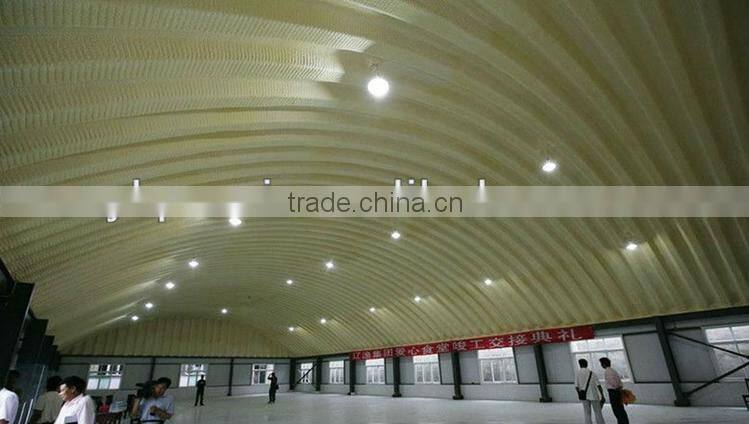

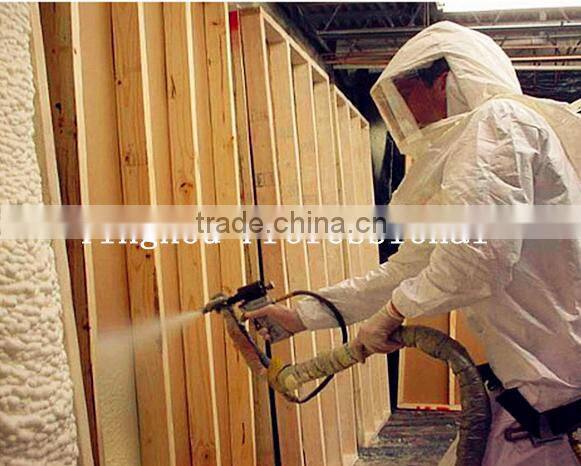

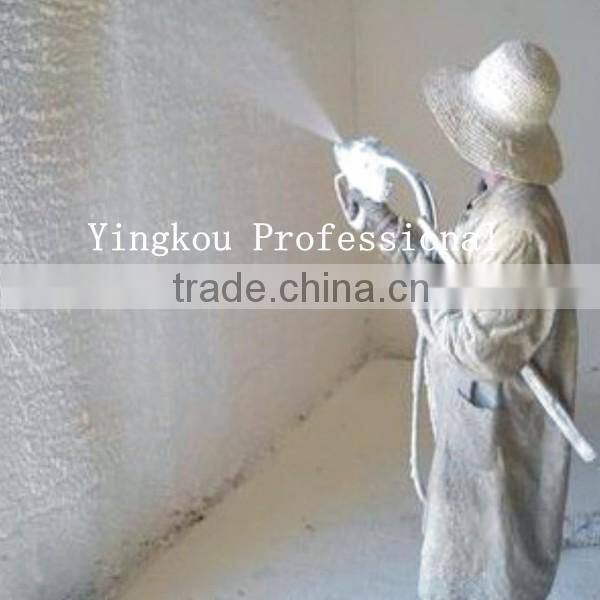

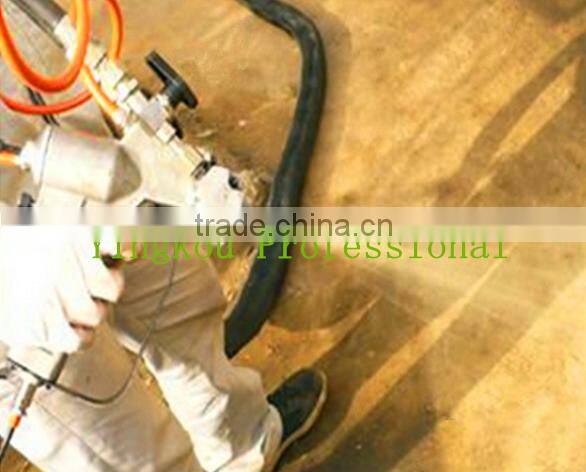

l   Project

l   Term

Payment term: T/T. 30% T/T in advance, 70% T/T before shipping.

Delivery: Within 30  days after receiving buyer’s 30% advanced payment.

Guarantee period: 13 months after B/L date.

Certification: CE.   ISO.
