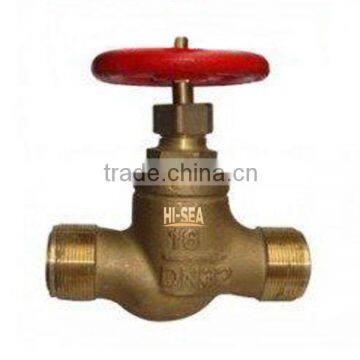

Marine Bronze Low Pressure Male Screw Thread Stop Valve
- 300 Piece / Pieces per Month
- Shanghai
- T/T
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Stop | |
| Pressure | Low Pressure | Power | Manual | |
| Material | Brass | Temperature of Media | Normal Temperature | |
| Media | Other, Water,oil, steam | Port Size | DN6-DN32 | |
| Place of Origin | Chongqing, China | Model Number | GB/T1951-1984 | |
| Brand Name | HS | Application | Other, Marine Valve, water, oil, steam |
Product Description
Stop Valve
Marine Bronze Low Pressure Male Screw Thread Stop Valve:
1.Design standard:GB600-82.
2.End standard:CB56-80.
3.End type:THread.
4.PN:1.6Mpa.
5.DN:6mm-32mm.
6.Main material:
- Body/Bonnet:BC6;
- Seat:BC6;
- Stem:SS410/BRASS;
- Disc:BC6.
7.Application:Sea water piping,fresh water piping,oil piping and steam piping.
8.Function:Such valves are used for on-off duty and regulating the flow rate.
9.Fundamental dimensions of Marine Bronze Low Pressure Male Screw Thread Stop Valve:
Chart 1 Fundamental dimensions of DN6 and 10mm:
DN/mm | Structure dimension/mm | Thread jiont/mm | Hand wheel | Lift range | Weight/kg | ||||||||||
L | H | H1 | |||||||||||||
A | B | A | B | B | D | D1 | D2 | L0 | L1 | D0 | S | m | A | B | |
6 | 78 | 34 | 90 | 77 | 32 | M18x1.5 | 15.8 | 9 | 13 | 2 | 50 | 6 | 5 | 0.34 | 0.28 |
10 | 80 | 34 | 90 | 78 | 32 | M22x1.5 | 19.8 | 13 | 14 | 2 | 50 | 6 | 5 | 0.40 | 0.32 |
Chart 2 Fundamental dimensions of DN15mm—32mm:
DN/mm | Structure dimension/mm | Thread jiont/mm | Hand wheel | Lift range | Weight/kg | ||||||||||
L | H | H1 | |||||||||||||
A | B | A | B | B | D | D1 | D2 | L0 | L1 | D0 | S | m | A | B | |
15 | 95 | 46 | 100 | 91 | 40 | M30x2 | 27 | 19 | 19 | 3 | 50 | 6 | 5 | 0.60 | 0.53 |
20 | 110 | 49 | 112 | 100 | 44 | M36x2 | 33 | 24 | 19 | 3 | 65 | 7 | 6 | 0.98 | 0.96 |
25 | 125 | 53 | 128 | 113 | 48 | M42x2 | 39 | 29 | 20 | 3 | 80 | 8 | 8 | 1.38 | 1.33 |
32 | 145 | 58 | 136 | 121 | 56 | M48x2 | 45 | 36 | 20 | 3 | 80 | 8 | 9 | 1.60 | 1.55 |
10.Drawing of Marine Bronze Low Pressure Male Screw Thread Stop Valve:
Drawing of type A:
Drawing of type B:
11. Certificate available:
