Specifications

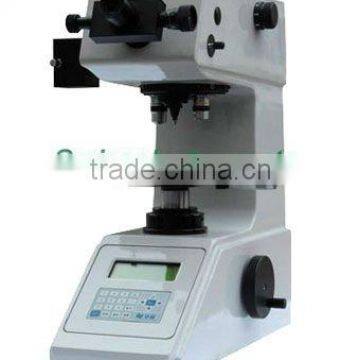

HV-1000B Microhardness Tester

HV-1000B Microhardness Tester can be used to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.

Feature & Use:

Automatic turret switching between penetrator and objective lens

Frictionless loading shaft, high precision testing force

Automatic testing process, no human operating error

Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E384

It can be used to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.

Specifications:

Hardness measuring range: 5-3000HV

Test force: 0.09807, 0.2452, 0.4904, 0.9807, 1.961, 2.942, 4.904,9.807N

                   (10, 25, 50, 100, 200, 300, 500, 1000gf)

Hardness scale: HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1

Magnifications of the measuring system: 400X (measuring), 100X (observing)

Min. scale value of the optical micrometer: 0.025μm

Measuring range: 200μm

Max. height of test piece: 75mm

Depth of throat: 110mm

Power supply: 220V AC or 110V AC, 50 or 60Hz

Dimensions: 470 x 320 x 500mm (18.5x12.6x19.7 inch)

Weight: approx. 40kg / 88lb

Standard accessories:

Coordinate anvil: 1 pc. (Table size: 100 x 100mm, travel: 25 x 25mm,

                                     grade division of micrometer head: 0.01mm)

Thin shaft anvil (Φ0.3- Φ5mm): 1 pc.

Thin plate anvil: 1 pc.

Flat nose pliers: 1 pc.

Large V-notch anvil: 1 pc.

Small V-notch anvil: 1 pc.

Diamond pyramid penetrator: 1 pc.

Micro-Vickers standardized block: 2 pcs.

Optional accessories

SP-5 Vickers Video measuring apparatus

Knoop penetrator

CCD camera and image processing system
