Magnetic Type Rockwell Hardness Tester,PHR-100

Specifications

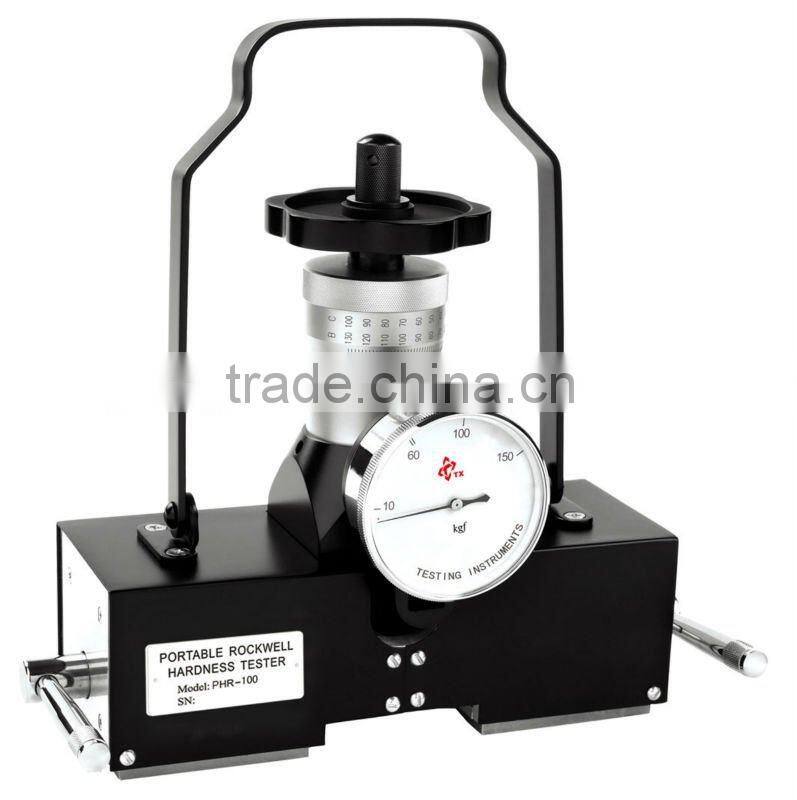

Magnetic Type Rockwell Hardness Tester PHR-100

Introduction:

 Attracted to iron or steel surface by magnetic force; only one
  side of the workpiece needs to be reached.

 The test principle and accuracy comply to standard ISO6508 and
  ASTM E110. Tested by National Institute of Metrology with
  tolorance

 Quick test, easy operation, good repeatability, high accuracy, no
  sampling required.

 Tests workpieces of any shape and dimension only if there is
  enough flat or cylindrical surface to fix the tester.

 Tests horizontally, slantingly and vertically.

 Used to accurately test the hardness of steel plate, steel
  pipe,shaft, mould, tube, pressure vessel, large workpieces
  and assembled parts, especially welding line and heat
  affected zone.

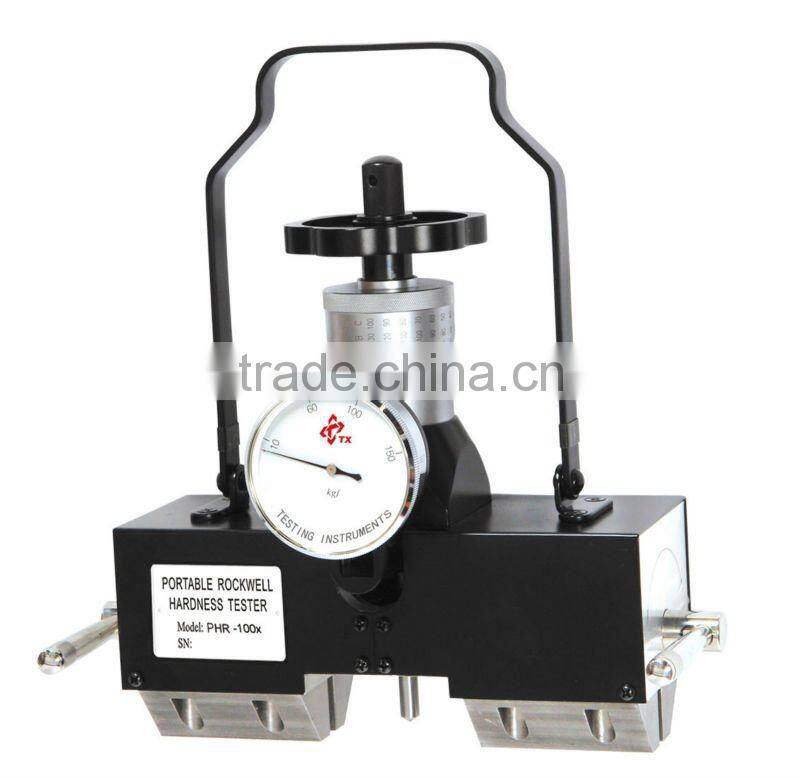

 The test surface of PHR-100x is small enough to test the
  hardness of small machine guide rails.

 Used for production inspection and acceptance inspection,
  replacing Leeb hardness testers with lower precision.

 Traceable standard hardness block.

 Indenter inspected with standard Rockwell hardness tester.

 Test force calibrated with load cells directly traceable to national
  secondary benchmark.

Main Technical Parameters

   Initial Test Force:              10kg
 Total Test Force:              60kg, 100kg,150kg
 Force Applying Method:   By Screw
 Indenter:                           120° diamond cone
                                           1.588mm carbide ball
 Accuracy:                         Meets the requirement of ISO 6508
 Resolution:                       0.5HR
 Testing Range:                HRA, HRB, HRC, etc.15 scales
 Application:                       All metals
                                           Iron and steel (direct test)
                                           Copper, Aluminium, Nickel, titanium,
                                           carbide etc. (test with sampling)

Application

 The test is quick, easy and steady with good repeatability and accuracy. So when the workpiece is available magnetic type hardness tester is the best choice.

  Magnetic type superficial Rockwell hardness tester is under development to test smaller, lighter, thinner specimens such as thin plate, thin hard carburized and nitrided steel.

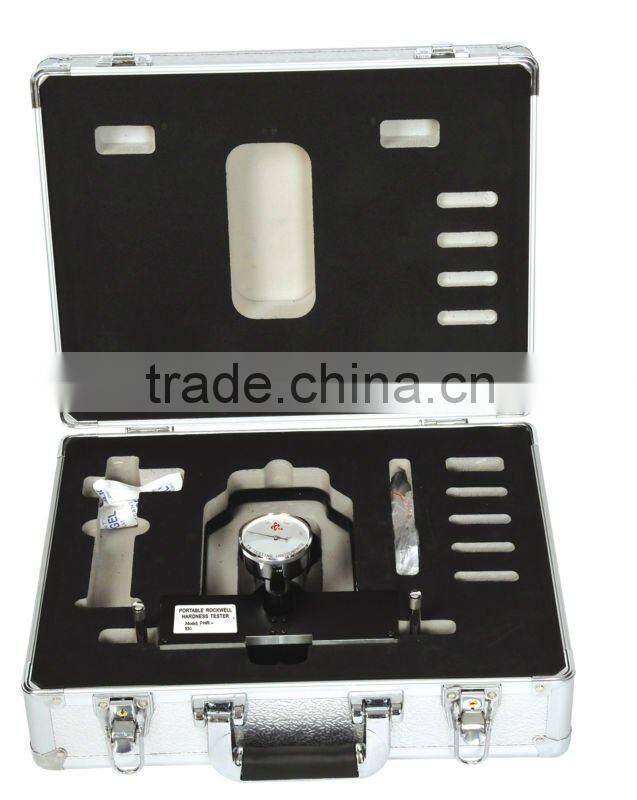

Standard Package

 tester
 120°diamond cone indenter
 1.588mm carbide ball indenter
 3 Rockwell test blocks
 V anvil (for testing flat and cylindrical surface)
 Flat anvil (for testing standard hardness block)
 Magnifier
 Base for standard test block
 Carrying case

Optional Accessories

 120°diamond cone indenter
 1.588mm, 3.175mm carbide ball indenter
 6.35mm, 12.7mm steel ball indenter
 Rockwell test blocks (HRA, HRC-High, HRC-Medium,
   HRC-Low, HRB)
 Customized adapter (for testing cylindrical
   specimen from 50mm to 100mm
