PN100 Carbon Steel Welding Gate Valve
- Shanghai Port or Ningbo Port
- T/T
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Gate | |
| Pressure | Medium Pressure | Power | Manual | |
| Material | Other, Carbon Steel | Temperature of Media | High Temperature | |
| Media | Other, Oil and Gas | Port Size | DN100 mm | |
| Place of Origin | Chongqing, China | Model Number | N/A | |
| Brand Name | HS |
Product Description
Specifications
Welding Gate Valve:1. Diameter: 15-300 mm
2. Temperature: High
3. Material: Carbpm Steel
4. Certificate: ISO9001
Weld Gate Valve:
PN100 Carbon Steel Welding Gate Valve:
1. Brief Introduction:
(1). Model: Z60Y,Z61Y,Z62Y
(2). Type: Straight Through Type
(3). Nominal Diameter: 15-300 mm
(4). Working Temperature: High Temperature
(5). Flow Way: Double Way
(6). Part: Valve Body
(7). Connection: Welding
(8). Application: Adjust Pressure
(9). Media: Water, Oil, Gas
(10). Material: Carbon Steel
(11). Pressure Temperature: High Pressure
(12). Sealing: Hard Sealing
(13). Drive Way: Hand Drive
2. Application:
The weld gate valve has wide application, such as petroleum, chemical, hydraulic power plant, all kinds of the pipeline system, cut off or connect pipe medium applicable medium: water, oil, steam and acid alkali ammonia urea sulfur gas.
3. Specification:
Z61H,Z61Y,Z61W Type PN100 Size | |||||
50 | 250 | 195 | 680 | 300 | 48 |
65 | 280 | 220 | 720 | 300 | 68 |
80 | 310 | 230 | 870 | 350 | 92 |
100 | 350 | 265 | 885 | 400 | 133 |
125 | 400 | 310 | 1020 | 450 | 216 |
150 | 450 | 350 | 1110 | 500 | 275 |
200 | 550 | 430 | 1225 | 500 | 360 |
250 | 650 | 500 | 1257 | 550 | 700 |

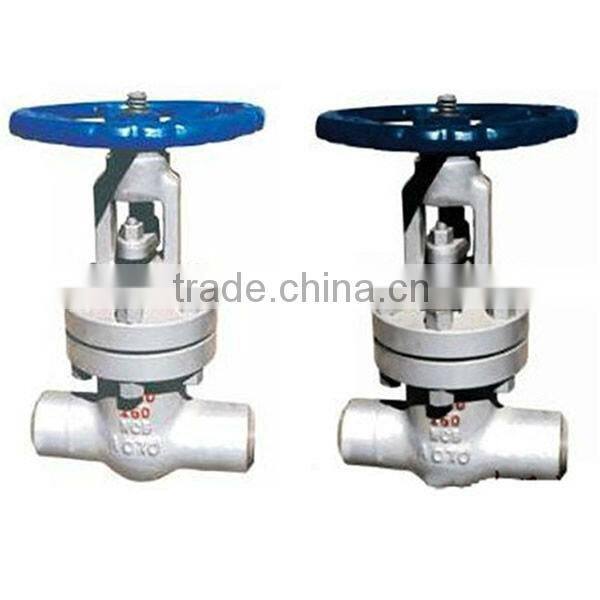

4. Weld Gate Valve Black Colour Type Picture:
5. PN100 Carbon Steel Welding Gate Valve Shipping Picture:
