DN40 Industry Steel Ball Valve
- Shanghai Port or Ningbo Port
- T/T
You May Like
-
API Standard Rising Stem Cast Iron Gate Valve
-
Pneumatic Diaphragm Angle Regulating Valve
-
High Quality Electric Piston Portable Marine Air Compressor
-
Marine Air-cooled Series and Water-cooled Series Air Compressor
-
Marine High Pressure Piston Water-cooled Series Air Compressor
-
Mini Marine Horizontal High Pressure Water-cooled Air Compressor
Product Details
| Standard or Nonstandard | Standard | Structure | Ball | |
| Pressure | Medium Pressure | Power | Other, Manual Operation | |
| Material | Other, Steel | Temperature of Media | Normal Temperature | |
| Media | Other, Water, Gas, Oil, Acidity | Port Size | DN50 | |
| Place of Origin | Chongqing, China | Model Number | N/A | |
| Brand Name | HS |
Product Description
Specifications
Steel Ball Valve:1. Cert.: ISO9001
2. Diameter: DN15-250
3. Pressure: 1.6-10.0Mpa
4. Media: Water, Gas, Oil, Acidity
Steel Ball Valve:
DN40 Industry Steel Ball Valve:
1. Detailed Information:
(1). Product Model: Q41F
(2). Product Diameter: DN15-DN250
(3). Product Pressure; 1.6-10.0 Mpa
(4). Media: water, gas, oil, acidity
(5). Working Temperature: Less Than or equal 250 degree
2. Main Parts (Material Cast Steel) :
(1). Valve Body: WCB (Cast Steel)
(2). Sphere: ZG1Cr18Ni9Ti (Cast Steel)
(3). Valve Stem: 2Cr13 (Cast Steel)
(4). Sealing Ring: Ptfe + graphite + high elastic rubber (type 8202)
3. Main Parts (Material Stainless Steel)
(1). Valve Body: ZG1C18Ni9Ti (Stainless Steel)
(2). Sphere: ZG1C18Ni9Ti (Stainless Steel)
(3). Valve Stem: 2Cr13 (Stainless Steel)
(4). Sealing Ring: Ptfe + graphite + high elastic rubber (type 8202)
4. Main Parts (Material Ci Ni Mo Ti Steel)
(1). Valve Body: ZG1C18Ni12TiMo2Ti (Ci Ni Mo Ti Steel)
(2). Sphere: ZG1C18Ni12TiMo2Ti (Ci Ni Mo Ti Steel)
(3). Valve Stem: ZG1C18Ni12TiMo2Ti (Ci Ni Mo Ti Steel)
(4). Sealing Ring: Ptfe + graphite + high elastic rubber (type 8202)
5. Q41F-25 Type:
Nominal Diameter DN/mm | Size/mm | |||||||
L | D | D1 | D2 | b | Z-d | H | LO | |
| 20 | 140 | 105 | 75 | 55 | 2 | 4-14 | 110 | 150 |
| 25 | 150 | 115 | 85 | 65 | 2 | 4-14 | 120 | 160 |
| 32 | 165 | 135 | 100 | 78 | 2 | 4-18 | 145 | 160 |
| 40 | 180 | 145 | 110 | 85 | 3 | 4-18 | 155 | 250 |
| 50 | 200 | 160 | 125 | 100 | 3 | 4-18 | 175 | 300 |
| 65 | 220 | 180 | 145 | 120 | 3 | 8-18 | 195 | 300 |
| 80 | 250 | 195 | 160 | 135 | 3 | 8-18 | 225 | 320 |
| 100 | 280 | 230 | 190 | 160 | 3 | 8-18 | 255 | 320 |
| 125 | 320 | 270 | 220 | 188 | 3 | 8-23 | 285 | 400 |
| 150 | 360 | 300 | 250 | 218 | 3 | 8-25 | 295 | 400 |
| 200 | 400 | 360 | 310 | 278 | 3 | 12-25 | 335 | 450 |
6. DN40 Industry Steel Ball Valve Left Part Picture:

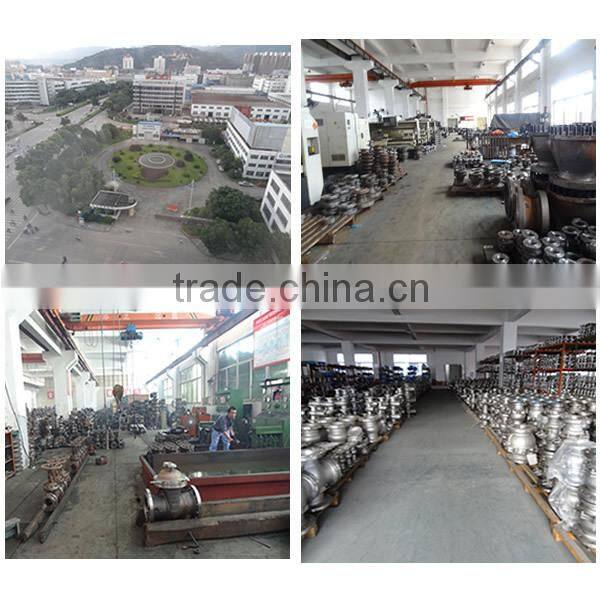

7. DN40 Industry Steel Ball Valve Factory Pictures:
