Four Fluorine Elastic Fiber Packing
- 10 Metric Ton / Metric Tons per Month
- Shanghai
You May Like
Product Details
| Standard or Nonstandard | Standard | Style | Mechanical Seal | |
| Material | Rubber | Place of Origin | Chongqing, China | |
| Brand Name | Hi-sea | Model Number | Hi-sea |
Product Description
Specifications
Fiber packing,1.Competitive Price.
2.High-quality.
3.Achieved ISO9001 certification.
Fiber packing.

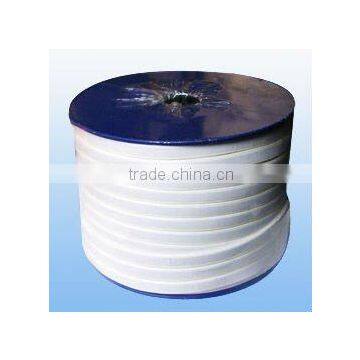

Four Fluorine Elastic Belt(string),
Characters:
Expanded PTFE sealing tape, 100% B High-quality PTFE dispersion resins, using a special formula and process technology. With a fully dense fibrosis of the structure of the preload pressure to form airtight, watertight seal of soft materials under high temperature stable performance and good creep resistance and resistance to cold flow capabilities, and has a very excellent tensile strength. Just a small amount of the reserve size, greatly reducing the user inventory, save on maintenance waiting time. Glass, plastics, ceramics and other brittle and damaged metal sealing surface of the sealing surface of an ideal sealing material.
Item | Unit | Parameter |
Density | g/cm3 | 0.5~0.8 |
Tensile Strength | Mpa | ≥8.0 |
Fugitive Constituent | % | ≤1.0 |
Hardness | Ha | 30~70 |
Stress Relaxation Rate | % | ≤40 |
Suitable Temperature | °C | -100~280 |
Suitable Pressure | Mpa | Gas 1.6 Liquid 6.4 |
PH |
| 0~14 |
Pretightening Pressure | Mpa | Min8~20(3mm~25mm |
Specification | Standard Package Length | Specification | Standard Package Length | ||
Width | Thickness | Width | Thickness | ||
3.0 | 1.5 | 30.0 | 16.0 | 5.0 | 3.0 |
4.0 | 2.0 | 30.0 | 17.0 | 6.0 | 4.0 |
5.0 | 3.0 | 25.0 | 20.0 | 7.0 | 5.0 |
7.0 | 3.0 | 20.0 | 22.0 | 7.0 | 7.0 |
8.0 | 3.0 | 10.0 | 25.0 | 8.0 | 8.0 |
9.0 | 3.0 | 10.0 | 28.0 | 5.0 | 9.0 |
10.0 | 4.0 | 10.0 | 30.0 | 5.0 | 10.0 |
12.0 | 4.0 | 6.0 | 40.0 | 4.0 | 12.0 |
14.0 | 5.0 | 6.0 | 50.0 | 4.0 | 14.0 |
