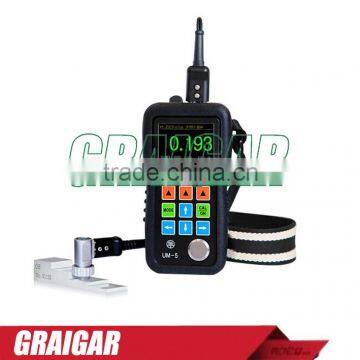

Ultrasonic Thickness Gauge UM-5

Single-crystal delayed probe is employed by UM-5 precis

e ultrasonic thickness gauge. The multi-echo is used to enhance the accuracy with the resolution of 0.0001’’ and the low limit of 0.012’’. There are two operating modes of M-3 ultrasonic thickness gauge: I-E (interface-echo) mode and E-E mode. The measuring range of I-E mode is 0.059’’-0.709’’, while the measuring range of E-E mode is 0.012’’-0.394’’.

Standard package:

UM-5 thickness gauge Standard probe (single-crystal delayed probe) Carrying case Two 1.5V AA alkaline batteries Couplant Operating manual Certification of quality Packaging list

Operating principle:

 I-E (interface-echo) mode with single-crystal delayed probe E-E (echo-echo) mode with single-crystal delayed probe

Measuring range:

1.5mm to 18mm; 0.059in-0.709in in I-E mode 0.25mm to 10mm; 0.012in-0.394in in E-E mode Depending on probe, material and surface condition

Digital resolution:

 H less than 0.4in : 0.0001in/ 0.001in/ 0.01in or 0.001mm/0.01mm/0.1mm H more than or equal to 0.4in : 0.001in/ 0.01in or 0.01mm/0.1mm

Units:

 Selectable: inch or mm

Display:

128×64 dot-matrix LCD screen (1.65in×2.24in; 42mm×57mm) EL backlight and switchable contract ratio Digit height: 0.54in or 13.75mm

Measurement update rate:

 4 Hz in standard measurement mode 25 Hz in MIN capture mode

Material velocity range:

 1000 to 9999 m/s; 0.039 to 0.394 inch/µs

Power:

Two 1.5V AA alkaline batteries Warning with low battery voltage

Operating time:

Up to 200 hours (without backlight) with alkaline batteries, depending on operating mode

Auto shut-off:

After 5 minutes of non-use

Operating temperature:

 -10C to +50C; +14F to +122F Specification to -20C/-4F on request

Size:

 5.86in×2.87in×1.25in; 149mm×73mm×32mm (H×W×D)

Weight:

200g / 0.44lb (including batteries)

Data logger capacity:

Up to 500 readings can be divided into a maximum of 5 files (user-selectable)

Optional accessories:

 Attachable rubber case Numerous special probes on request Couplants and high-temperature couplant 4-step/6-step block for calibration Data transmission cable Application software

Operating language:

English and Chinese

Interfaces:

Serial RS 232C port in combination with a communicative cable; Data transfer parameters: 8 bits, 1 stop bit 9600 baud, no parity.
