Home > Products > NDT Instruments > UM6500 Portable Digital Ultrasonic Thickness Gauge Meter 1.0-245mm,0.05-8inch (in Steel)

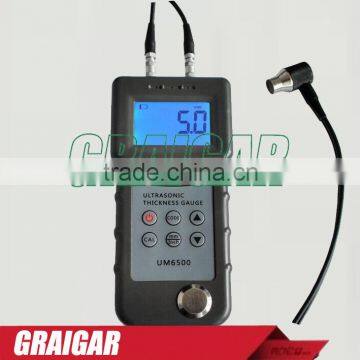

UM6500 Portable Digital Ultrasonic Thickness Gauge Meter 1.0-245mm,0.05-8inch (in Steel)
US$ 100 - 160
/ Piece
1 Piece(Min. Order)
- Shenzhen
- T/T Credit Card PayPal
You May Like
-
UM6700 Ultrasonic Thickness Gauge Meter Tester 1.0-280mm,0.05-11.8inch (in Steel)
-
UM-5DL A&B-Scan Ultrasonic Wall Thickness Meter Tester Gauge Through Coating
-
UM-5D A&B Scan Through Coating Ultrasonic Thickness Gauge
-
UM-4DL A-Scan Ultrasonic Wall Thickness Gauge Meter Tester w/Through Paint/Coating Function and Data Logger is Avaliable
-
Ultrasonic Thickness Meter TM-8810 thickness gauge
-
Ultrasonic Thickness Meter TM-8811 thickness gauge
Product Details
| Brand Name | Graigar | Model Number | UM6500 |
Product Description
Specifications
UM6500 Portable Digital Ultrasonic Thickness Gauge Meter 1.0-245mm,0.05-8inch (in Steel)
Product Description
UM6500 Portable Digital Ultrasonic Thickness Gauge Meter 1.0-245mm,0.05-8inch (in Steel)
Application Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing. Materials measured: only 11 types of materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron
High resolution measurement
Probe automatic zero calibration for system error correction
Capture the value of the minimum thickness.
Status indicator of the coupling and low battery.
Auto sleep and auto power off function to conserve battery life.
Humanized shape design, compact and portable, Can be used in harsh environment.
Specifications
1)Display:4.5 digits LCD with EL backlight.
2)Operating principle:
ULTROSONIC
3)Measuring range (metric/imperial):
1.0-245mm,0.05-8inch (in Steel).
4)Resolution: 0.1mm;
5)Accuracy:
±(0.5%H+0.1)mm, depends on materials and conditions
6)Units: Metric/Imperial unit selectable.
7)Power supply:
4x1.5 AAA size (UM-4) battery
8)Battery indicator: low battery indicator
9)Operating conditions:
0-+45℃(32℉-104℉)
≤90%RH
10)Dimensions:
Main Unit 140mm×60mm×22mm
11)Gloss Weight :1KG
12)Standard Delivery:
Main Unit,8mm Probe,
Coupling Oil, User Manual ,
Carrying Case.
Our Services
Contact Us
- Shenzhen Graigar Technology Co., Ltd.
- Contact nameLeo Lee Chat Now
- Phone86-755-27541660
- AddressShajing Street,Baoan District, Shenzhen, Guangdong
