Home > Products > Mechanical Equipment > WDW-T Series Computerized Electronic Universal Testing Machine (Floor Type, 50kN, 100kN, 200kN, 300kN (Desktop Type, 10kN, 20kN)
WDW-T Series Computerized Electronic Universal Testing Machine (Floor Type, 50kN, 100kN, 200kN, 300kN (Desktop Type, 10kN, 20kN)
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Graigar | |
| Model Number | WDW-T |
Product Description
Specifications

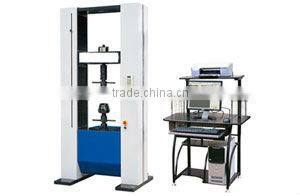

WDW-T Series Computerized Electronic Universal Testing Machine (Floor type, 50kN, 100kN, 200kN, 300kN (Desktop Type, 10kN, 20kN)WDW-T Series Computerized Electronic Universal Testing Machine (Floor type, 50kN, 100kN, 200kN, 300kN, 600kN)
1. Introduction:
It is used for tensile, compression, bending, shearing, peeling, tearing, etc tests of metal and non-metal materials, like rubber, plastic, wire and cable, composite material, metal bar, panel, spring, etc. It confirms to GB, ISO, etc standards, it also supports customized standard.
2. Main Technical Parameters:
Model Specifications | WDW-T50 | WDW-T100 | WDW-T200 | WDW-T300 | WDW-T600 | |
Range of testing force (kN) | 0.1~50 | 0.2~100 | 0.4~200 | 0.6~300 | 1.2~600 | |
Class (Load Accuracy) | 1 or 0.5 grade | |||||
Resolution of testing force | Max. testing force 1/30000, no subsection or seven subsection | |||||
Relative error of displacement | ±0.5% | |||||
Resolution of displacement measuring | 0.03 | |||||
Min. reading value of displacement (mm) | 0.001 | |||||
Resolution of crosshead | ≥0.001 | |||||
Speed range of crosshead | 0.001mm/min~500mm/min, servo control | |||||
Accuracy of deformation measuring | ≤±0.5% | |||||
Measuring range of deformation | 2%~100% | |||||
Effective tensile testing space (mm) | 650 | 650 | 680 | 600 | 500 | |
Compression testing space (mm) | 1000 | 1000 | 1480 | 1100 | 900 | |
Width of testing space (mm) | 560 | 560 | 580 | 650 | 600 | |
Jaw dimension | flat specimen | 0~14 | 0~14 | 0~20 | 0~20 | 0~50 |
round specimen | φ4~φ22 | φ4~φ22 | φ9~φ26 | φ9~φ26 | Φ5~φ50 | |
Power supply | Three phase, 220/380V±10%, 50/60Hz | |||||
Working environment | Room temperature~40°C, relative humidity <80% | |||||
Overall dimension (mm) | 1020×800×2180 | 1020×800×2180 | 1090×820× | |||
Weight (kg) | 1100 | 2000 | 3000 | |||
