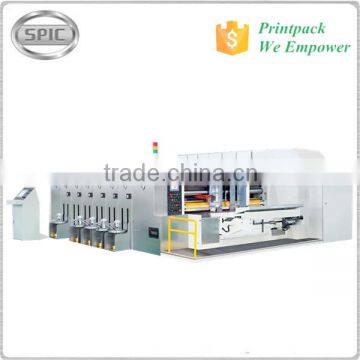

Vacuum Transferred Carton Box Printing Machine

Vacuum transferred carton box printing machine

Feeder Unit:

Continuous or skip feeding is available with counter

Variable frequency drive control for vacuum blower fan for increased or decreased vacuum suction to match different sizes of paperboard.

Feeding roll is made of two-layer rubber,inner layer is soft and outer is hard.

Dust removal system adopted for adjusting feeding rolls gap.

Motorized and PLC control of feeder side guides.

Printer Unit:

The fixed speed differences between rubber roller and anilox roller is set ro make the rubber roller take a part in scraping the ink.

Printing register and transverse register is digitally controlled by motor and PLC

Quick set and self locking pull collars.

Self-locking system is adopted on the caliber adjustment of pull roll,impression roll,rubber roll and anilox roll.

Cleaning function can be automatically switched to ensure the ink recycling thoroughly.

Automatic resetting after cleaning the printer.

Slotting Unit:

An internal gear adjusts the height of the carton box and prevents to lubricating oil from spilling or leaking onto the paperboard.

Slotting bosses move along linear bearings and are driven by lead screws for flexible and precise movement.

Slotting register and height of carton box are digitally controlled by motor and PLC

Manual and self-locked caliber adjustment of pre-creaser and creaser.

Flexible angle cutting knife can cut 3 or 5 ply paperboard with no adjustment.Easy to operate.

Die cutting Unit:

Side to side oscillation of anvil drum (50mm)

Die cutting register and die cut cylinder lateral register is digitally controlled by motor and PLC

Motorized caliper adjustment between anvil roll and die drum.

Self-lock system is adopted for adjusting the pulling rollers.

Parts List:
