Corrugated paperboard single facer machine in China

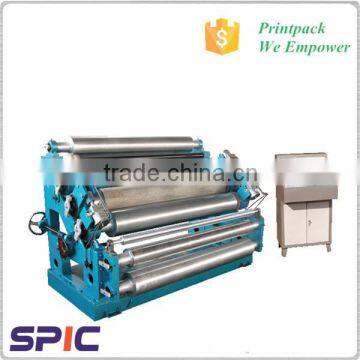

Corrugated paperboard Single Facer Machine

1. Vacuum suction paper leading features perfect flute formation.

2. The individual oil-bathed driving box, universal joint drive, which is separated from dynamics

oscillating, improves running stability.

Frequency-changing motor main drive and vacuum suction blower type wind machine.

3. Individual applicator roll clean up device and electrical glue pan dams;

Auto-circulating glue feeding system. The drive motor separately runs.

4. The flute forming unit and glue application unit are designed particle structure.

Which simplifies maintenance cleaning assembling and disassembling of corrugating roll.

5. The whole machine is controlled by PLC. The touch screen show running date.

6. Main bearings are all lubricated by high temperature. Lubricating pease.

Specifications:

1,working width:1600mm

2,Operating direction:Left or Right(According to customer’s plant)

3,Speed:120m/min

4,Temperature:160—200℃

5,Air source:0.4—0.9Mpa

6,Steam pressure:0.8—1.3Mpa

7,Flute type(UV or UVV):

roll diameters:

1,corrugator roll: 320mm

2,pressure roll: 324mm

3,glue roll: 240mm

4,pre-heating : 325mm

motor specifications:

1,Main Motor:15KW              Power Supply:380V    50Hz

continuous(S1)working form

2,suction motor:11KW            Power Supply:380V    50Hz

continuous(S1)working form

Main parts:
