4 Color Automatic Corrugated Carton Box Flexo Printing Machine
- Any port of China
- T/T L/C D/P D/A
You May Like
-
4 Color Automatic Carton Box Flexo Printing Slotting Machine
-
4 Color Computerized Flexo Printer Slotter Die-cutter Stacker Machine
-
1200x2400 PLC Control Flexo Printer Slotter Machine for Sale
-
1200x2400 Computerized Flexo Printer Slotter Machine for Sale
-
1200x2400 Full-auto Large Flexo Printing Slotting And Die Cutting Machinery
-
Automatic Huge Flexo Printing Slotting And Die Cutting Machine
Product Details
| Condition | New | Plate Type | Letterpress | |
| Place of Origin | Shanghai, China | Brand Name | SPIC corrugated box flexo printing machine | |
| Model Number | 2400 corrugated box flexo printing machine | Usage | Other, printing slotting machine, corrugated box flexo printing machine | |
| Automatic Grade | Automatic | Voltage | 380V 50Hz | |
| Gross Power | 30KW | Dimensions(L*W*H) | 4x1.8x12 | |
| Weight | 10T | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

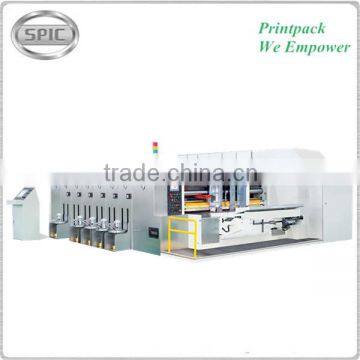

4 color Automatic corrugated carton flexo printing machine
Main Machine Features:
·Inverter control of motor speed--save energy.
·Computer control store orders, changing orders fast and convenient, all the control systems adopt PLC touch screen, simple and easy to operate.
·The adjustment of the format: auto set zero, auto clean version, memory function.
·Drive gear adopt alloy steel 20CrMnTi precision grinding gears, automatic cycle spray lubrication system.
·Printing rollers, embossing rollers, guide shaft, split shaft all finely grinding.
· The gap adjustment of the transfer two roller, embossing roller, rubber roller, anilox roller adopts the structure of the self--locking.
·The machine is produced according to the standardization of R&D, roller consumables and other vulnerable parts, standard parts adopt international standard, convenient to purchasing.
Parameters:
corrugated box flexo printing machine corrugated box flexo printing machine corrugated box flexo printing machine corrugated box flxo printing machine
| Max. mechanic speed(pcs/min) | 200 | 200 | 200 | 200 | 180 | |
| Max. feeding size(mm) | 880×2000 | 1180×2000 | 1180×2000 | 1380×2400 | 1600×2800 | |
| Min. feeding size(mm) | 280×650 | 320×750 | 320×750 | 360×750 | 420×750 | |
| Skip feeding(mm) | 1100×2000 | 1500×2000 | 1500×2400 | 1700x2400 | 1900×2800 | |
| Max. printing area(mm) | 800×2000 | 1150×2000 | 1150×2400 | 1320x2400 | 1540×2800 | |
| Max. thickness of board(mm) | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | |
| Min. slotting size | Slotting type L.(mm) | 160×160×160×160 | 160×160×160×160 | 160×160×160×160 | 160×160×160×160 | 165×165×165×165 |
| Slotting type L.(mm) | 240×80×240×80 | 250×90×250×90 | 250×90×250×90 | 280×90×280×90 | 260×90×260×90 | |
| Max. slot depth(mm) | 250 | 320 | 320 | 320 | 560 | |
| Max. thickness of board(mm) | 12 | 12 | 12 | 12 | 12 | |
| Dimension(L×W×H)(mm) Note:S-Single D-Double T-Three F-Four | 11659×4240×3200 | 13015×4400×3500 | 13015×4800×3500 | 13570×4820×3500 | 14021×5220×3500 | |
| 12079×4240×3200 | 13550×4400×3500 | 13550×4800×3500 | 14208×4820×3500 | 14701×5220×3500 | ||
Note: Machinde sizes can be customzied according to customers.
printing slotting machine
Feeding Unit:
·Lead edge feeder system adopts frequency conversion adjustment air and vacuum pressure, to ensure the paper is more stable and accurate. It's suitable for different board sizes and curved board.
·The rear bracket control front and back electrically. Bracket angle adjustment is convenient, and can be continuous or skip feeding.
·Brushes and suction device remove dust from board surface.Ensure the printing effect.
·The side baffle plate, the front baffle position of electric control adjustment, side neat paper function.
·Double roller feeding structure, quick change type structure of feed roller, feeding more accurate and stable.
·The main control computer and labor adjustment of man-machine control system, easy to operate.
Printing Unit:
·The printing phase are controlled on the main console and each unit console with digital display. registering accuracy is ±0.3mm.
·Phase position utilizing electromagnetic clutch locking device, automatic reset system.
·Scroll type hanging plate device the left and right sides of the lock. Exchanging from is fast and convenient.
·Pull roller quick lateral moving mechanism, self-locking gap adjustment device.
·Option control model ink saving circle wash system.
Slotting Unit:
·Slotting dimension can be controlled on the main console or each unit console with digital display.
·Pre-creaser, creaser, slotting knife holder, self-locking gap adjustment device.
·Precision linear slide way, accurate lateral movement with glabrous slotting.
·Middle knife motorized moving device, fit for each production.
·Spring type single slitting knife with glabrous slitting effect and cost saving.
Die Cutting Unit:
·Die-cutting phase position, electric control gears.
·Pneumatic gear gap locking device, the gap adopts electric adjustment.
·Rubber roller automatic horizontal moving mechanism, automatic reversing 50mm horizontal moving. Prolong the service life of rubber pad.
·America CUE imported rubber pad, easy to exchange and résistance to wear and tear.
·Pads grinding trimming mechanism increase the utilization rate of the pad, reduce the consumption.
· Precision overrunning clutch and speed compensation system, to ensure the die-cutting accuracy, wide scope of compensation.
carton box printing machine
* The above information and specifications are subjects to change without prior notification.
* SPIC reserves all the rights for final explanations.
printing slottingmachine printing slotting machine
We Promise: All your machines will be packed in steady seaworthy package.
