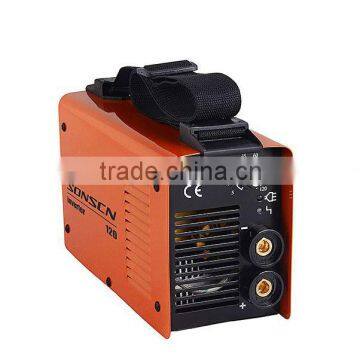

mini DC ARC Electric welder
- Ningbo/Shanghai
- T/T Credit Card PayPal
You May Like
-
CE approval Portable IGBT inverter single phase Mini mma DC welding machine with high duty cycle
-
Portable DC MMA Inverter welder SMAW welding machine
-
DC ARC Welding machine inverter MMA IGBT welder
-
Portable IGBT inverter stick welding machine
-
DC ARC120 Welding machine inverter MMA IGBT welder
-
convertable DC welder
Product Details
Condition | New | Place of Origin | Zhejiang, China | |
Brand Name | SONSCN/OEM | Model Number | ARC120 | |
Arc Current | 10-130A | Pulse Frequency | 60kHZ | |
Pilot Arc Current | 10A | Rated Duty Cycle | 60 | |
Motor Type | Other, No motor | Dimensions | 31X12X21 | |
Usage | Metal welding | Voltage | 220V or 110V | |
Power(W) | 3.9kw | Certification | CE,CCC | |
Warranty | 12 months | After-sales Service Provided | Overseas service center available |
Product Description
The mini DC ARC Electric welder electric welder move the winding and adjust welding electric current,
simple structure, dependability is high,
have long performance life;
Have level and smooth quiet outside that lowers suddenly and characteristic of moving well ,
have waves to well up the device ,
can additional wave well up electric current in the course of welding,
in order to increase electric arc thrust, promote and melt the transition of dripping, make it weld , it is a mma welder easy to master , go on craft arc-welding have good welding performance under different position to face upward not to stand.
The scope of application is wide, can weld low carbon steel , medium carbon steel , alloy steel , stainless steel ,etc. with the welding rod of various kinds of trade marks.
Model No. | ARC120 |
Input power voltage (V): | AC230V±10% |
Rated input current(A): | 18A |
Input AC(HZ) : | 50/60 |
NO-load voltage(V) : | 75 |
Output voltage(V) : | 25V |
Output current range(A) : | 5-140 |
Protection class : | IP21 |
Efficiency(%): | 85 |
Duty cycle(%) : | 60 |
No-load power(W) : | 20 |
Power factor cos : | 0.93 |
Net Weight(KG) : | 4.1kgs |
Product size: LxWxH(cm) | 29x13x18 |
Carton : LxWxH(cm) | 38x33x31 (2pcs/carton) |
Unit Includes |
Inverter Welder box carton |
or
Unit Includes |
Inverter Welder plastic suitcase (carrying case) carton |
Our mini DC ARC Electric welder are applied the certificate of CE,GMC,CCC etc.
10. Attend the Caton Fair
Every year we attend twice Canton Fair , You can see all our mini DC ARC Electric welder
in the fair and check the quality of the products. Highly welcome come to visit our factory after the fair. Let's talk face to face.
Q: Where is your factory?
A: Yongkang City, Zhejiang, China
Q: What kind of certificate you have?
A: CE and CCC, All kinds of certificates can be supply based on large purchase quantity.
Q:How long will it take if asking for the samples?
A: General speaking, 3 working days after get the payment.
Q:What is your lead time for the mass products such as 5000 units per item?
A: It is about 25-35 days after getting the advanced payment.
Q:What is your payment terms?
A: T/T, by cash, western union, or L/C.
Q: What are your market reach throughout the region?
A:Our markets around the world in every corner, we have 8 years of experience in foreign trade
Q:What is your main product line is made?
A:We mainly produce inverter arc welders, TIG welders, MIG welders Jumper starter and UPS. etc
Q:Are you factory or trading company?
A:We are a factory, we provide OEM services.
Q: What is your warranty?
A: It is 12months. Usually we supply some spare parts for the customer repair with next order if there is any broken.
