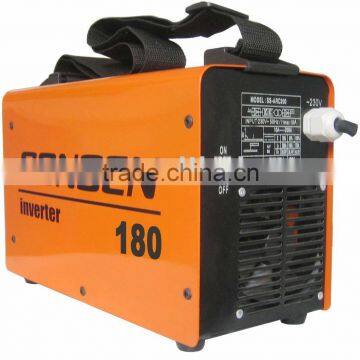

dc arc inverter welder(ARC 180)
- ningbo/shanghai
- T/T
You May Like
-
mma welding machine:dc inverter arc welder
-
Portable inverter DC arc welding machine/mma welding machine/arc welder/mma welder ARC200
-
Portable DC Inverter mma welding machine 200A
-
Portable DC Inverter mma arc welder 180A
-
lightest DC inverter arc welder ZX7-160
-
CE approval portable arc welding machine ZX7-200
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SONSCN | |
| Model Number | ARC180 | Arc Current | 10-180A | |
| Pulse Frequency | 60HZ | Pilot Arc Current | 30A | |
| Rated Duty Cycle | 35@180A,60@140A | Motor Type | Other, No motor | |
| Dimensions | 31x13x21cm | Usage | metal welding | |
| Voltage | 220V | Power(W) | 5.8kw | |
| Certification | CE CCC | Warranty | 1 Year | |
| After-sales Service Provided | Overseas service center available |
Product Description
ARC180 dc arc inverter welder has the following characteristics:
Features:
1. Compact structure, small, light, portable, easy to carry, energy saving. The electric welding mahcine is one of the smallest and lightest in the world.
2. Direct and reliable welding current digital display.
3. Automatic compensation for electricity voltage pulsation.
4. Advanced IGBT inverter technology, electronic circuit design, handy power supply.
5. Easy arc initiation, stable welding current, fast dynamic response, no welding noise, low welding spatter, no magnetic bias, smooth weld appearance.
6. Safe, stable and reliable operation, good efficiency.
Applications:
1. Suitable for carbon steel, stainless steel, alloy steels and others require
High quality weld applications.
2. Shipyards.
3. Electric power, petrochemical Constructions.
4. Maintenance shop.
5. Light and heavy industries.
6. Boiler pressure container manufacture.
| SPECIFICATIONS | ARC180 |
| Input power voltage (V) | AC230±10% |
| Rated input current(A) | 24A |
| Input AC(HZ) | 50/60 |
| NO-load voltage(V) | 80 |
| Output voltage(V) | 27.6V |
| Output current range(A) | 5-180 |
| Protection class | IP21 |
| Efficiency(%) | 85 |
| Duty cycle(%) | 60 |
| No-load power(W) | 30 |
| Power factor cos | 0.93 |
| Net Weight(KG) | 4.7 |
| Product size: | 31x13x21 |
| Carton : | 39.5x31x29 (2pcs/carton) |
Standard: | CE,EMC | |
Trademark: | OEM/SONSCN/neutral | |
1 pc/box 2boxes/carton size:38x33x31cm
2 # accessories: welding holder, welding cable, earth clamp, wire brush, welding mask
1 pc/suitcase 2suitcases/carton size: 48x 32x 41cm
