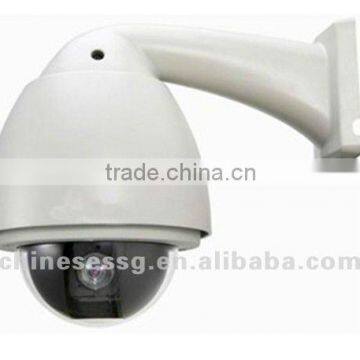

Low Speed Dome IP Camera SA6803L

Specifications

Low Speed Dome IP Camera SA6803L

1.Basic Description
SA6803L series based on IP network, achieve network digital surveillance, transmit clear, smooth video surveillance images.

SA6803L series built-in integration camera, advanced H.264 codec. Supports dual streaming, Transmit high-quality H.264 video in the low-bandwidth network environment smooth , also supports MJPEG compression; high performance precision Integration camera achieve zoom, with built-in full-speed PTZ, Suitable for large-scale, multi-angle surveillance and Continuous tracing target; Support audio, alarm,TF card storage,provide third-party systems integration interface.

The series use high-strength aluminum alloy shield, integrated dome design; Protection grade: IP66; Built-in temperature control device (fan and Optional heater),Suitable for bitter cold and scorching heat, and other harsh environments (Outdoor mold).

Apply to forests, scenic, highway, railway, airport, port, square, park, street, railway stations, stadiums, residential district and other places.

With video surveillance system software platform, can realize different network environments of large-scale network surveillance.

3.Expand Type
Basic:SA6803L-L16, SA6803L-L16N
SA6803L-L27, SA6803L-L27N

4.Key Features

* Built-in Hitachi integration camera
* Max resolution: 704*576
* Horizontal speed:6°~15°/sec
* H.264/MJEG is optional, dual streaming, high compression ratio,and high quality.
* Support Micro SDHC storage; SD2.0 standard
* Auto focus,manual priority; Auto iris, manual priority
* Manual control of speed and lens focal length is proportional, ensure smooth and accurate search target
* Horizontal rotation range: 360°, Vertical rotation range :180
* Preset positions: 64
* Auto Scan, Horizontal /Vertical rotation range angle can be set,scanning speed adjustable
* Patrol: 4 groups, each patrol up to 16 presets
* Power off memory function
* Title, date and time, stream information, azimuth angle, zoom display
* Support two-way talking
* Support TCP/IP,UDP,RTSP protocols
* Support motion detection, network fault detection and alarm video, image snapping
* Built-in Web server enables the use of a standard Web browser for viewing and management.
* Quick and easy electrical connection
* Protection grade:IP66
* Built-in surge voltage protection and lightning protection devices
* Installation: indoor/outdoor wall-mounted, Ceiling mounting
* Support ONVIF protocol

5.Applications Scenarios
Applicable to forests, scenic, highway, railway, airport, port, square, park, street, railway stations, stadiums, residential district and other places.
