ip camera hd wifi HD Speed Dome IP Camera SA7803-MPS

Specifications

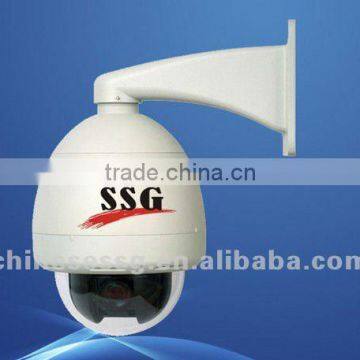

HD Speed Dome IP Camera SA7803-MPS

1.Basic Description
SA7803-MPS series based on IP network, achieve network digital surveillance ,transmit clear, smooth video surveillance images.

SA7803-MPS series built-in Hitachi HD 18X zoom integration camera, advanced H.264 codec, Maximum digital images resolution: 1280*960, Supports dual streaming, Transmit high-quality H.264 video in the low-bandwidth network environment smooth , also supports MJPEG compression; high performance precision Integration camera achieve zoom, with built-in full-speed PTZ, Suitable for large-scale, multi-angle surveillance and Continuous tracing target; Support Color/BW mode converting, Particularly suitable for outdoor illumination of low environmental;Support audio, alarm ,IR-CUT function,TF card storage,provide third-party systems integration interface.

The series use high-strength aluminum alloy shield, integrated dome design; Protection grade:IP66; Built-in temperature control device(fan and Optional heater),Suitable for bitter cold and scorching heat, and other harsh environments (Outdoor mold).

Apply to forests, scenic, highway, railway, airport, port, square, park, street, railway stations, stadiums, residential district and other places. Provide 720P HD video image, in the indoor / outdoor low illumination environment with excellent reduction ability.

With video surveillance system software platform, can realize different network environments of large-scale network surveillance.


2.Naming rules
SA7803-MPS
SA7803:IP Speed Dome Camera
MPS:Mega Pixels CCD


3.Expand Type
Basic:SA7803-MPS

4.Key Features
* Built-in Hitachi HD 18X zoomintegration camera
* 1/3"Progressive Scan CCD
* Max resolution:1280*960, output Real-time HD 720P image
* Support Color/BW mode converting (dual IR-Cut filter)
* Min.Illumination: Color : 0.1Lux/F1.6, B/W :0.005Lux/F1.6
* H.264/MJEG is optional, dual streaming,high compression ratio,and high quality.
* Support AWC/ATW,AGC,BLC, brightness, chroma, saturation, sharpness adjustment
* Manual control of speed and lens focal length is proportional, ensure smooth and accurate search target
* Horizontal rotation range: 360°, Vertical rotation range :180
* Preset positions: 255; Precision≤0.05º
* Auto Scan, Horizontal /Vertical rotation range angle can be set,scanning speed adjustable
* Patrol :2 groups, each patrol up to 8 presets
* Timed task: 5 groups; Preset / Pattern / Patrol / Rotate/ Auto Scan
* Resume Function
* Title, date and time, stream information, azimuth angle, zoom display
* Support two-way talking
* Support Micro SDHC storage; SD2.0 standard
* Support TCP/IP,UDP,RTSP protocols
* Support motion detection, network fault detection and alarm video, image snapping
* Built-in Web server enables the use of a standard Web browser for viewing and management.
* Quick and easy electrical connection
* Protection grade: IP66
* Built-in surge voltage protection and lightning protection devices
* Installation: indoor/outdoor wall-mounted, Ceiling mounting
* Support ONVIF protocol
