ip camera hd wifi HD IR High Speed Dome IP Camera SA7803H-MP-IR8

Specifications

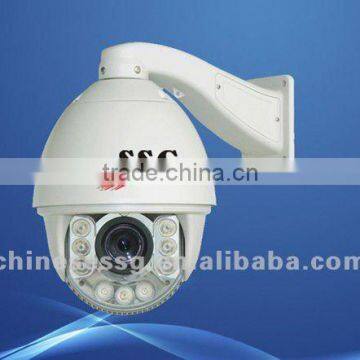

HD IR High Speed Dome IP Camera SA7803H-MP-IR8

1.Basic Description
SA7803H-MP-IR8 series based on IP network, achieve network digital surveillance, transmit clear, smooth video surveillance images.

SA7803H-MP-IR8 series built-in zoom integration camera, advanced H.264 codec, Supports dual streaming, Transmit high-quality H.264 video in the low-bandwidth network environment smooth , also supports MJPEG compression; high performance precision Integration camera achieve zoom, Suitable for large-scale, multi-angle surveillance and Continuous tracing target; Support Day/Night mode swith, Selection of imported high-power super lattice array of infrared LEDs, equipped with a powerful video analysis dimming technology, with manual, automatic, timing, camera synchronization and other mode, the max distance up to 150m, especially suitable for outdoor 24 hours monitoring; Support graphical Chinese OSD menu system, simpler and more intuitive operation. Support video auto-tracking function, auto tracking of moving targets in the preset scene, and auto match the lens zoom, after the target disappear, return to the preset scene. Support audio, alarm , TF card storage, provide third-party systems integration interface.
This series of products using spherical shells of die-cast aluminum, Protection grade :IP66, Unique cooling technology, built-in temperature control device (cooling fan and heater), suitable for using in harsh environments. Quickly handing installation.

3. Model
SA7803H-MPS-IR8
SA7803H-MPC-TH-IR8
SA7803H-MPC-TS-IR8

4.Key Features
* 9 imported high-power super lattice array of infrared lights, IR distance 180M(MAX)
* Up to 8 privacy masking areas (Requires camera to support)
* Auto tracking function, auto tracking of moving targets within the preset scene
* Infrared auto-dimming technology, Low-carbon environmental protection and energy saving of 50%, the infrared lamp life up to 3x
* Unique cooling technology,Cooling effect is good, high reliability, dustproof and waterproof
* Park, set the ball machine idle for some time, automatically call preset, scan, cruise mode, the path functions
* Support graphical OSD menu ,Chinese and English display
* 256 Preset points
* 8 Patrols, each patrol up to 32 presets
* 4 Patterns, 500 commands(about 30 minute)/pattern
* Auto scanning:8
* PELCO_P, PELCO_D and other control protocols automatic identification
* Horizontal rotation range: 360°, Vertical rotation range :180
* Horizontal speed: 0.01~350°/S; Vertical speed: 0.01~120°/S
* H.264/MJEG is optional, dual streaming, high compression ratio and high quality.
* Support Micro SDHC storage; SD2.0 standard
* Title, date and time, stream information, azimuth angle, zoom display
* Support: TCP/IP, UDP, RTSP, HTTP, DDNS, FTP, NTP, PPPOE, SMTP Support ONVIF protocol
* Built-in Web server enables the use of a standard Web browser for viewing and management.
* Protection grade :IP66
* Lightning protection design, 3000V surge protection
* All aluminium crust and sphere; Quickly handing installation

5.Applications Scenarios
Applicable to forests, scenic, highway, railway, airport, port, square, park, street, railway stations, stadiums, residential district and other places.
