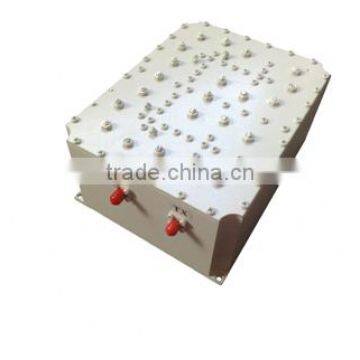

380MHz Duplexer
- Shenzhen Hong Kong Guangzhou
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | xinlun | |
| Model Number | XL-DUP-380A |
Product Description
380MHz Duplexer Specifications
1 Specifications
NO. | Parameters | ||
RX | TX | ||
1 | Frequency Range | 385MHz -390MHz | 395MHz -400MHz |
2 | Insertion Loss | ≤2.0dB | ≤2.0dB |
3 | Pass Band Ripple | ≤1.0dB | ≤1.0dB |
4 | Attenuation Out of Band | ≥85dB@ DC-370MHz ≥90dB@395-400MHz ≥85dB@400-3000MHz | ≥85dB@ DC-385MHz ≥90dB@ 385-390MHz ≥85dB@415-3000MHz |
5 | Isolation | ≥90dB | |
6 | VSWR | ≤1.35 | |
7 | Average Power | ≥60W | |
8 | RF Connection Mode | ANT:SMA/F,50Ω; RX: SMA/F,50Ω; TX: SMA/F,50Ω; | |
9 | Operation Temperature | -25℃ ~ +70℃ | |
10 | Storage Temperature | -40℃ ~ +85℃ | |
11 | Humidity | ≤95% | |
12 | Dimension | 177mm*134mm*85mm(L*W*H) | |
13 | MTBF | ≥100000h | |
2 Machine Drawing
Fig3-1 Machine Drawing for Duplexer
3 ConnectorInterface Definition
Items | Description | Remark | |
1 | ANT | Antenna Interface | SMA/F |
2 | RX | RX Interface | SMA/F |
3 | TX | TX Interface | SMA/F |
