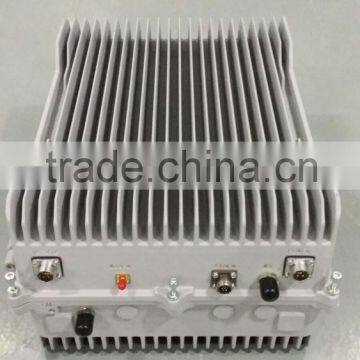

150Mhz VHF 10W Wireless Band Selective Repeater

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Xinlun
Model Number	XL-150-10

150Mhz VHF 10W Wireless Band Selective Repeater

NO.	Items		Parameters		Remarks
			Downlink	Uplink
1	Frequency Range		165.5MHz~166.5MHz	170.5MHz~171.5MHz
2	Output Power(Max)		40±2Bm	30±2dBm
3	Max Gain		90±3dB	85±3dB
4	Gain Modulation Range		30dB
5	Gain Modulation Step		1dB
6	Gain Modulation Error		While gain is 0-20dB,Error≤1dB;While gain is 21-30dB,Error≤1.5dB
7	Noise Factor		≤5dB	≤5dB	Test with full gain
8	Max NO Damage Input Power		-10dBm	-10dBm
9	Automatic Level Control(ALC)		Output power variation < 2dB or be off when adding 10dB at max output power. Control range≥30dB.
10	Pass Band Ripple		≤3dB
11	VSWR		≤1.5
12	Time Delay		≤6.0μs
13	Spurious Emissions	In-Band	≤-36dBm/3kHz or ≤-60dBc/30kHz
		Out-Band(Deviation from the band edge outside 2.5MHz)	9kHz~1GHz:≤-36dBm
			1GHz~12.75GHz:≤-30dBm
14	IMD	In-Band	≤-45dBc/30kHz
		Out-Band(Deviation from the band edge outside 2.5MHz)	9kHz~1GHz:≤-36dBm
			1GHz~12.75GHz:≤-30dBm
15	Out of Band Rejection		≤-40dBc @2.5MHz ≤-60dBc @10MHz
16	Frequency Stability		≤0.05ppm
17	Local Monitoring & Control		RS232
18	RF Connection Mode		N/F,50Ω
19	Power Supply Mode		AC 220V±20%,45~55Hz
20	Power Consumption		≤230W
21	Operation Temperature		-25℃~ +55℃
22	Casing class		IP55
23	Machine Weight		≤25kg
24	Dimension		357mm×217mm×453mm (WHL)
25	MTBF		≥50000h
