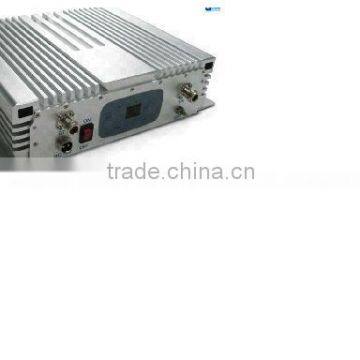

Tetra 300mW Band Selective Pico Repeater

NO.

Items

Parameters

Remarks

Downlink

Uplink

1

Frequency Range

390MHz~395MHz

380MHz~385MHz

390MHz~430MHz,Can be customized according to customer requirements

2

Output Power(Max)

25±1dBm(Total)

17±1dBm(Total)

3

Max Gain

80±3dB

80±3dB

4

Gain Modulation Range

30dB

5

Gain Modulation Step

1dB

6

Gain Modulation Error

While gain is 0-20dB,Error≤1dB;While gain is 21-30dB,Error≤1.5dB

7

Noise Factor

≤6.5dB

≤6.5dB

8

Max NO Damage Input Power

-10dBm

-10dBm

9

Automatic Level Control(ALC)

Output power variation < 2dB or be off when adding 10dB at max output power.

10

Pass Band Ripple

≤3dB

11

VSWR

≤1.5

12

Time Delay

≤5.0μs

13

Spurious Emissions

In-Band

≤-36dBm/30kHz

Complies with ETSI

Out-Band(Deviation from the band edge outside 2.5MHz)

9kHz~1GHz:≤-36dBm

1GHz~12.75GHz:≤-30dBm

14

IMD

In-Band

≤-36dBm/30kHz

Complies with ETSI

Out-Band(Deviation from the band edge outside 2.5MHz)

9kHz~1GHz:≤-36dBm

1GHz~12.75GHz:≤-30dBm

15

Frequency Stability

≤0.05ppm

16

Gain Out of band

≤50dB@400kHz

≤40dB@600kHz

≤35dB@1MHz

≤25dB@5MHz

Complies with ETSI

17

Local Monitoring & Control

USB

Dry contact alarm

18

RF Connection Mode

N/F,50Ω

19

Power Supply Mode

The Power adapter,

In: AC 100V~260V,45~55Hz;

Out: 9V/5A;

20

Power Consumption

≤50W

21

Operation Temperature

0℃~ +50℃

22

Storage Temperature

-40℃~ +85℃

23

Mounting

Wall Mounted

24

Machine Weight

≤4kg

25

Dimension

296mm×76mm×280mm (W*H*L)

26

MTBF

≥100000h
