MNSJ LV Withdrawable Switchgear Assemblies

FOB Price

US$ 1,000 - 30,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	Juneng or customized
Model Number	MNS

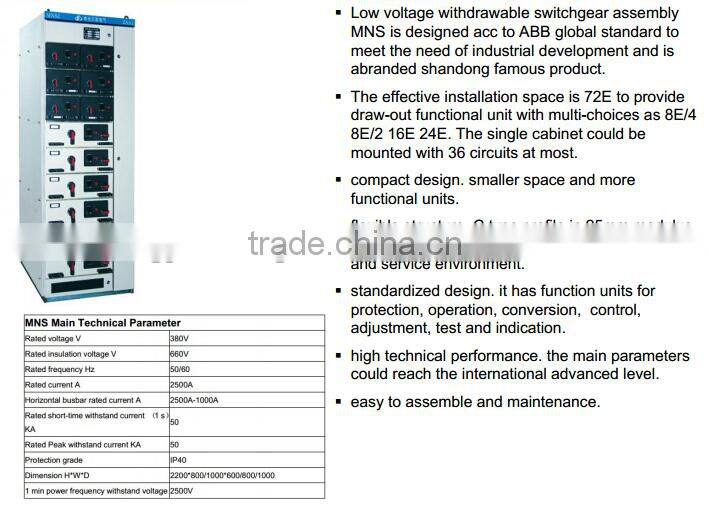

LOW VOLTAGE WITHDRAWABLE SWITCHGEAR ASSEMBLIES MNSJ

ABOUT SHOUGUANG JUNENG ELECTRIC CO., LTD

Feature

Electrical characteristics
Rated insulation voltage	1000/AC
Rated operational voltage	680/AC
Rated impulse withstand voltage	12kV
Overvoltage category	4
Degree of pollution	3
Rated frequency	up to 60Hz
Main busbars
Rated current	up to 6300A
Rated peak withstand current	up to 220kA
Rated short-time current	up to 100kA
Distribution busbars
Rated current	up to 1200A(2000A)
Rated peak withstand current	up to 110kA (170kA)
Rated short-time current	up to 50kA (80kA)
Strucutural characteristics
Dimension
Cabinet and component	DIN41488
Recommended height	2200mm
Recommended width	400/600/800/100/1200mm
Recommended depth	600/800/1000/1200mm
Module	E=25mm
Protection grade	according to IEC529 or DIN41060	IP30 - IP54

payment terms & packing

1.payment terms: T/T with 30% deposit or L/C

2.packing detail: wooden case or at the requirement of customers

3.delivery time: usually within 30 days after the deposit

What we can do better

Quality Assurance--From the very beginning, JUNENG ensures quality in every step to achieve the best quality.
Experience Sharing--With over 10 years’ experience in power industry, JUNENG brings you an optimized solution.
Quick Response--In response to your needs without delay, JUNENG knows the value of your time.

LV Switchgear Display

Workshop & Equipment

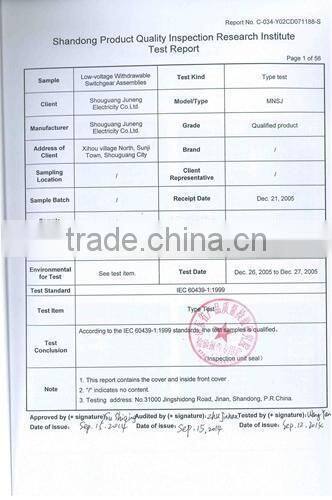

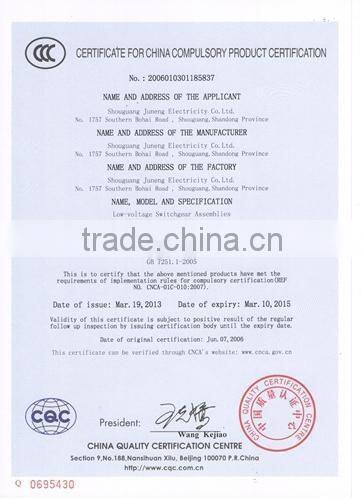

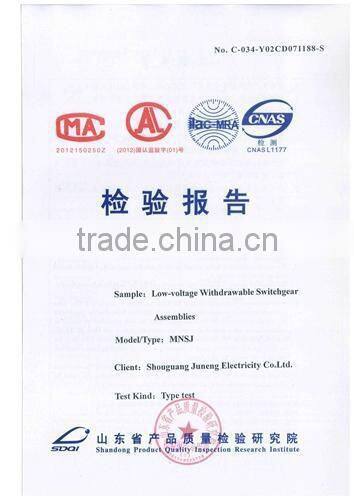

certificate
