Most advanced Vacuum filter type peanut oil press machine

FOB Price

US$ 1 - 1,799 / Piece

1 Piece(Min. Order)

Port Ningbo Qingdao Shanghai guangzhou
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Usage	Other, Rapeseed seed,soybean, peanut
Type	Other, Cold & Hot Pressing Machine, Vacuum filter type	Automatic Grade	Automatic
Production Capacity	20~30kg/h oil	Place of Origin	Jiangxi, China
Brand Name	Dulong	Model Number	DL-ZYJ60D
Voltage	220v/380v, 220v/380v	Power(W)	3 Kw
Dimension(LWH)	10580140cm	Weight	330KG, 330KG
Certification	Best quality guarantee	After-sales Service Provided	No overseas service provided

Product Description

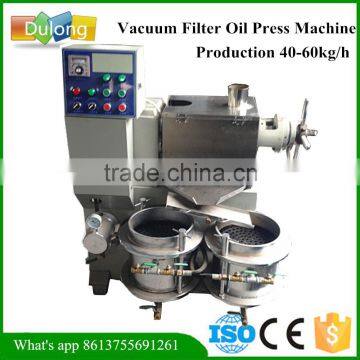

Most advanced Vacuum filter type peanut oil press machine

Product Description

Oil Press Introduction:

Model: DL-ZYJ60D

Power: main moter:3 Kw,filter:0.75Kw

Voltage:220v/380v for your choice

Packing Demension: 110*85*145cm

Intput: 40-60kg raw material per hour

Capacity:20~30kg/h

Usage:Rapeseed,seed,soybean, peanut,pepperseed,sunflower, cottonseed,tallow treeseeds,tung treeseeds,corn,sesame,walnut etc.

Available industrial oil press models:

Oil press type	Model name	Dimension	Net weight	Voltage/power	Input(raw material)
Vacuum filter model	DL-ZYJ60D	10580140cm	330kg	Motor: 3kw Filter: 0.75kw 220v/380v	40-60kg/h


	DL-ZYJ70D	14090120cm	350kg	Motor: 4kw Filter: 0.75kw Voltage: 380v	70-90kg/h


	DL-ZYJ100D	160110150cm	750kg	Motor: 5.5kw Filter: 0.75kw Voltage: 380v	100-120kg/h


	DL-ZYJ120D	175110170cm	850kg	Motor: 7.5kw Filter: 0.75kw Voltage: 380v	120-150kg/h


	DL-ZYJ200D	210150180cm	1200kg	Motor:7.5kw Filter: 1.1kw Voltage: 380v	200-230kg/h


	DL-ZYJ220D	220155180cm	1200kg	Motor: 11kw Filter: 1.1kw Voltage: 380v	220-240kg/h


	DL-ZYJ400D	250165200cm	1600kg	Motor:18.5kw Filter: 1.1kw Voltage: 380v	400-450kg/h


	DL-ZYJ450D	258165200cm	1700kg	Motor: 22kw Filter: 1.1kw Voltage: 380v	450-550kg/h


Vertical temperature control	DL-ZYJ60C	11040130cm	260kg	3kw	40-60kg/h
				220v/380v
	DL-ZYJ70C	12548130cm	280kg	4kw, 380v	70-90kg/h
Hydraulic press mdoel	DL-ZYJ01Y	606080cm	260kg	220v,1.5kw,55-60pa	15-20kg/h 2-3.5kg/ time
	DL-ZYJ02Y	100100120cm	550kg	220v,1.5kw,55-60pa	35-50kg/h 6-8kg/ time
	DL-ZYJ03Y	9065143cm	1100kg	220v,1.5kw,55-60pa	50-80kg/h 8-12kg/ time

Oil Press Picture show:

Packaging & Shipping

Oil Press Operation:

1. Connect to the power and turn on the switch.

2. Regulate the temperature to be 150 -260, per raw materials.

3. Start the screw temperature heater

4. Start the motor forward-rotating when the temperature is okay.

5.First put a small amount of raw materials for pressing, to test whether the machine can be normal operation. And batch input materials after the diesel smoothly.

6.Close the termperature heater when materials pressing finished. And let the machine working emty for 2~5 mintues.

7.Stop the machine and disconnect the power when all the materials are pressing out.

Temperature regulator:

Temperature Regulator Chart
Raw Materials	Temperature Range
seasame	180~230
peanuts,vegetable seed, soybean, sunflower seed,okra etc	140~190
tea seed	150~190
