Multifunctional automatic DL-ZYJ100D palm oil press machine

              Multifunctional automatic DL-ZYJ100D palm oil press machine

Introduction:

Model: DL-ZYJ60D

Power: main moter:3 Kw,filter:0.75Kw

Voltage:220v/380v for your choice

Packing Demension:  110*85*145cm

Intput: 40-60kg raw material per hour

Capacity:20~30kg/h

Usage:Rapeseed,seed,soybean, peanut,pepperseed,sunflower, cottonseed,tallow treeseeds,tung treeseeds,corn,sesame,walnut etc.

 Features:

1.Cold pressing ,light oil color, rich nutrition, pure natural oil, save refining cost;

2.Presscake's protein is damaged lightly,Oil protein will be taken full advantage of.

3.There is no any solvent, acid, alkali, bleaching earth,chemical additives, during the squeezin process;

4. High oil extraction rate;about 2-3 percent higher than old-fashioned equipment.

5. Energy saving and labor saving.

Picture show:

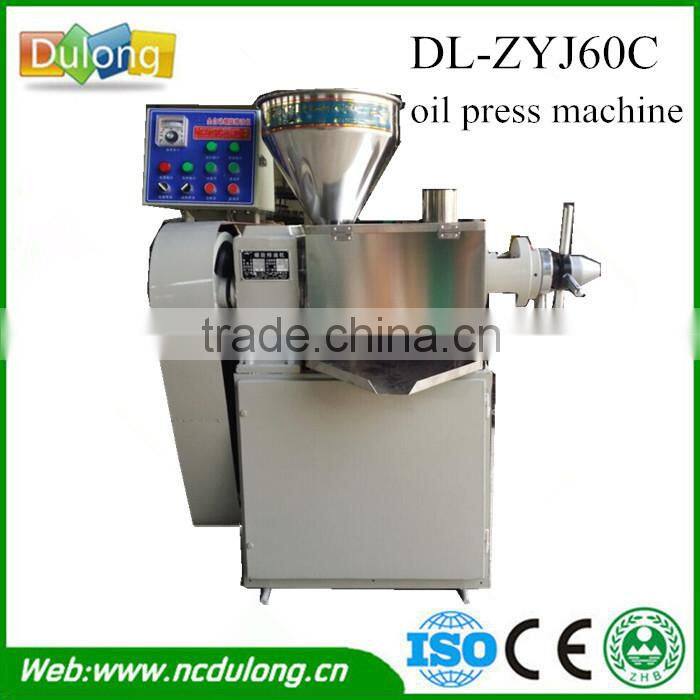

DL-ZYJ60C:40-60kg/h input

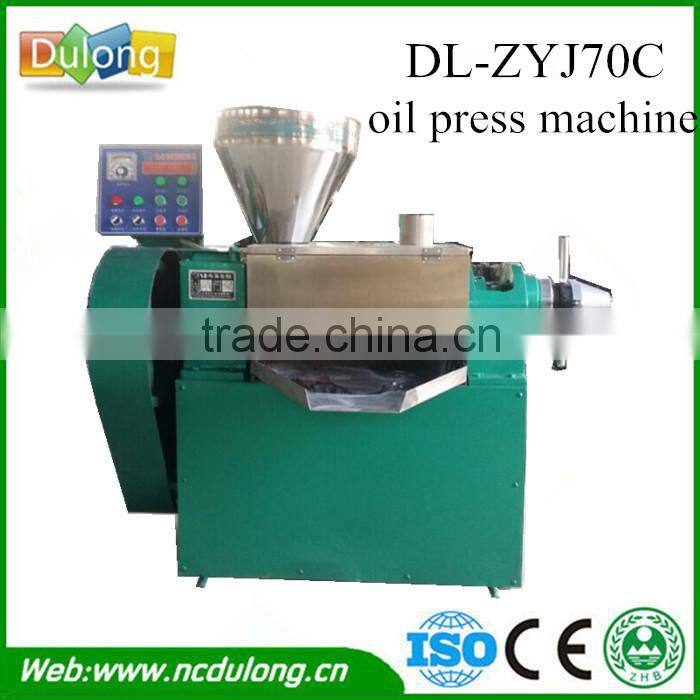

DL-ZYJ70C:70-90kg/h input

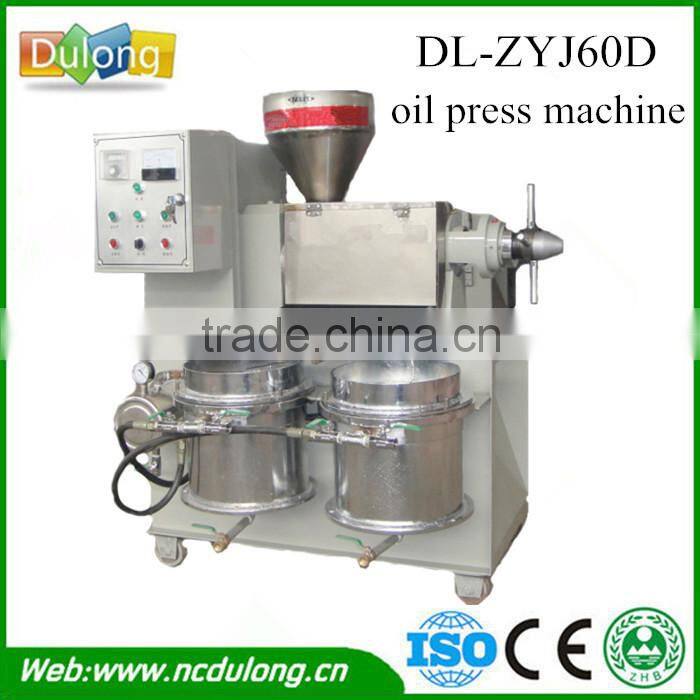

DL-ZYJ60D:40-60kg/h input(with 2 filters)

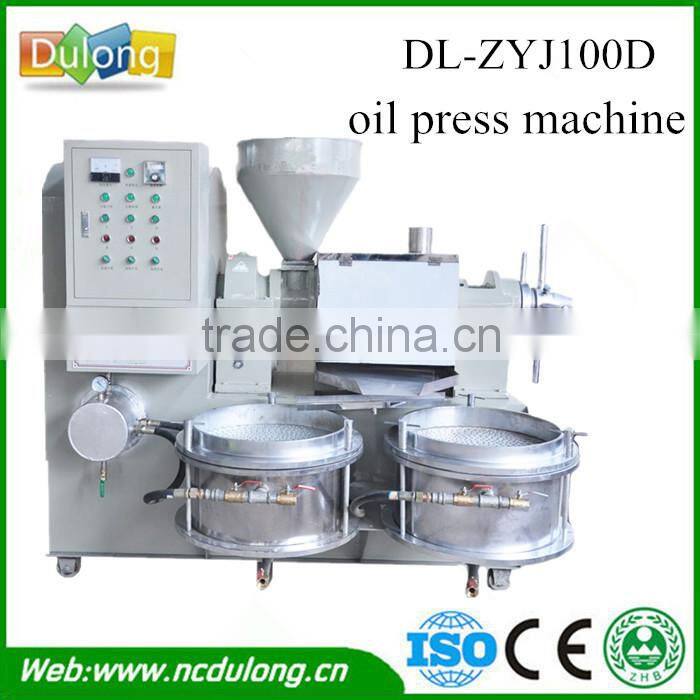

DL-ZYJ100D:100-120kg/h input(with 2 oil filters)

  Temperature regulator:

Operation:

1. Connect to the power and turn on the switch.

2. Regulate the temperature to be 150 -260, per raw materials.

3. Start the screw temperature heater

4. Start the motor forward-rotating when the temperature is okay.

5.First put a small amount of raw materials for pressing, to test whether the machine can be normal operation. And batch input materials after the diesel smoothly.

6.Close the termperature heater when materials pressing finished. And let the machine working emty for 2~5 mintues.

7.Stop the machine and disconnect the power when all the materials are pressing out.

Available industrial oil press models:

Package:
