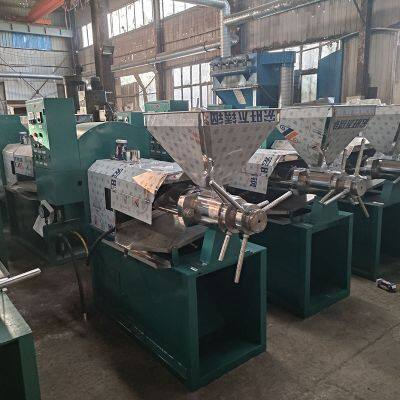

Multifunctional Oil Press Can Process Peanut, Sesame And Sunflower Oil

Description

The various models of high-efficiency and energy-saving screw oil presses produced by our factory have

the advantages of exquisite material selection, reasonable design, beautiful appearance, reliable quality, simple operation, small footprint, labor saving, electricity saving, high output, and good oil quality. Various

technical indicators are in the leading position in the domestic oil press industry. This series of oil presses

can process nearly 20 kinds of raw materials and can squeeze them all at once (except for some varieties). The oil is vacuum filtered and there is very little residue in the oil, which ensures the purity and hygiene of

the oil. ? Structure and working principle

structure

This series is mainly composed of five parts: automatic control part, heating part, adjustment part, transmission part and vacuum oil filter

1. The automatic control part is composed of air switch, AC contactor, temperature controller, circuit

automatic protection device, etc. 2. The heating and pressing part is composed of heater, pressing screw and pressing bar, machine body

assembly, etc. 3. The transmission part is composed of main shaft and reduction pulley, motor wheel, etc. 4. The adjustment part is composed of adjustment screw, adjustment nut, handle, locking nut, etc. 5. The vacuum oil filter part is composed of vacuum pump, oil filter barrel pipeline, etc. working principle

After the power is decelerated, it is transmitted to the main shaft. The screw installed on the main shaft

rotates, pushing the oil between the threads forward continuously. As the space between the pressing

chamber and the screw gradually decreases, the density of the oil increases, and the pressure gradually

increases. During the pressing process, friction occurs between the oil particles and between the oil and

the parts, generating heat. This constitutes the two major elements of pressure and heat in the oil pressing

process, destroying the tissue cells of the oil, causing the oil to overflow from the oil line, and the cake to

be pushed out from the cake outlet head and the cake outlet. When the overflowing oil flows into the oil

filter barrel through the oil pan, the vacuum pump extracts the air in the barrel, forming a negative

pressure in the barrel, and the oil is drawn into the barrel through the filter cloth, while the oil residue is

isolated on the filter cloth. At this time, pure oil is obtained.
