Home > Products > Industrial oil press machine > Hydraulic Type Automatic Olive Oil Extraction Machine

Hydraulic Type Automatic Olive Oil Extraction Machine

FOB Price

US$ 2,500 - 2,999 / Set

1 Set(Min. Order)

Port Qingdao Ningbo
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Usage	Olive Oil
Type	Other, Hydraulic type	Automatic Grade	Automatic
Production Capacity	50-80kg/h	Brand Name	DULONG
Model Number	DL-ZYJ03Y	Voltage	AC180-240V,50-60HZ
Power(W)	1.5kw	Dimension(LWH)	9065143cm
Weight	1100kg	Certification	CE

Product Description

Hydraulic type automatic olive oil extraction machine

Introduction:

Model: DL-ZYJ03Y

Power: 1.5kw

Voltage: AC180-240V,50-60HZ

Pressure: 55-60pa

Packing Demension: 100*75*155cm

Intput: 50-80kg raw material /h, 8-12kg/ time

Usage: Olive seed, coconut, palm, walnut, seed, soybean, peanut,pepperseed,sunflower,

cottonseed,tallow treeseeds,tung treeseeds,corn,sesame,walnut etc.

Available industrial oil press models:

Oil press type	Model name	Dimension	Net weight	Voltage/power	Input(raw material)
Vacuum filter model	DL-ZYJ60D	10580140cm	330kg	Motor: 3kw Filter: 0.75kw 220v/380v	40-60kg/h


	DL-ZYJ70D	14090120cm	350kg	Motor: 4kw Filter: 0.75kw Voltage: 380v	70-90kg/h


	DL-ZYJ100D	160110150cm	750kg	Motor: 5.5kw Filter: 0.75kw Voltage: 380v	100-120kg/h


	DL-ZYJ120D	175110170cm	850kg	Motor: 7.5kw Filter: 0.75kw Voltage: 380v	120-150kg/h


	DL-ZYJ200D	210150180cm	1200kg	Motor:7.5kw Filter: 1.1kw Voltage: 380v	200-230kg/h


	DL-ZYJ220D	220155180cm	1200kg	Motor: 11kw Filter: 1.1kw Voltage: 380v	220-240kg/h


	DL-ZYJ400D	250165200cm	1600kg	Motor:18.5kw Filter: 1.1kw Voltage: 380v	400-450kg/h


	DL-ZYJ450D	258165200cm	1700kg	Motor: 22kw Filter: 1.1kw Voltage: 380v	450-550kg/h


Vertical temperature control	DL-ZYJ60C	11040130cm	260kg	3kw	40-60kg/h
				220v/380v
	DL-ZYJ70C	12548130cm	280kg	4kw, 380v	70-90kg/h
Hydraulic press mdoel	DL-ZYJ01Y	606080cm	260kg	220v,1.5kw,55-60pa	15-20kg/h 2-3.5kg/ time
	DL-ZYJ02Y	100100120cm	550kg	220v,1.5kw,55-60pa	35-50kg/h 6-8kg/ time
	DL-ZYJ03Y	9065143cm	1100kg	220v,1.5kw,55-60pa	50-80kg/h 8-12kg/ time

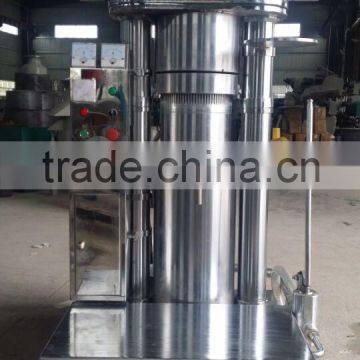

Hydraulic presss picture show:

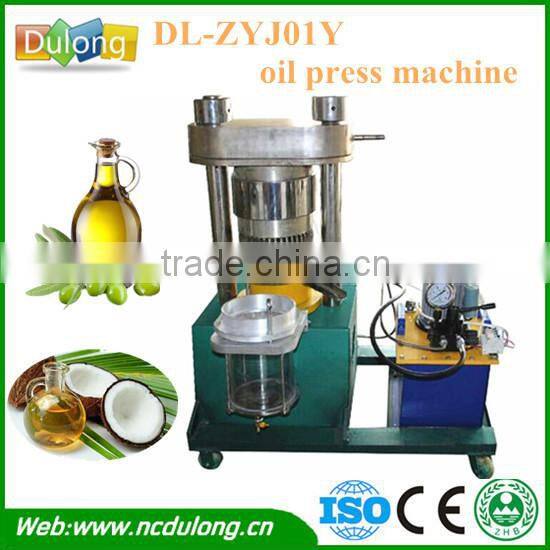

DL-ZYJ01Y:15-20kg/h input

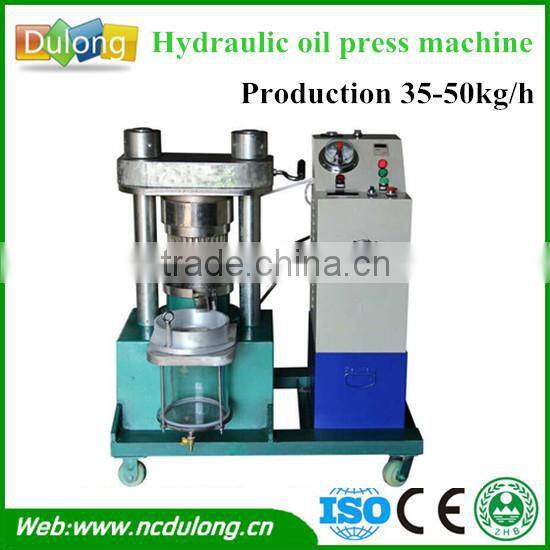

DL-ZYJ02Y:35-50kg/h input

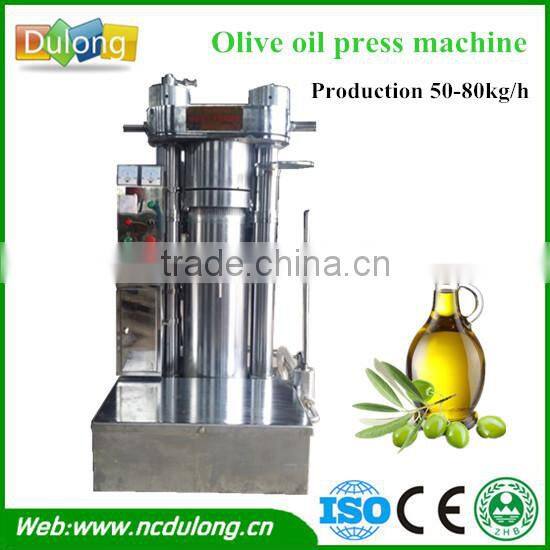

DL-ZYJ03Y: 50-80kg/h input

Temperature regulator:

Temperature Regulator Chart
Raw Materials	Temperature Range
seasame	180~230
peanuts,vegetable seed, soybean, sunflower seed,okra etc	140~190
Olive seed, tea seed	150~190

Operation:

1. Connect to the power and turn on the switch.

2. Regulate the temperature to be 150 -260, per raw materials.

3. Start the screw temperature heater

4. Start the motor forward-rotating when the temperature is okay.

5.First put a small amount of raw materials for pressing, to test whether the machine can be normal operation.

And batch input materials after the diesel smoothly.

6.Close the termperature heater when materials pressing finished. And let the machine working emty for 2~5 mintues.

7.Stop the machine and disconnect the power when all the materials are pressing out.

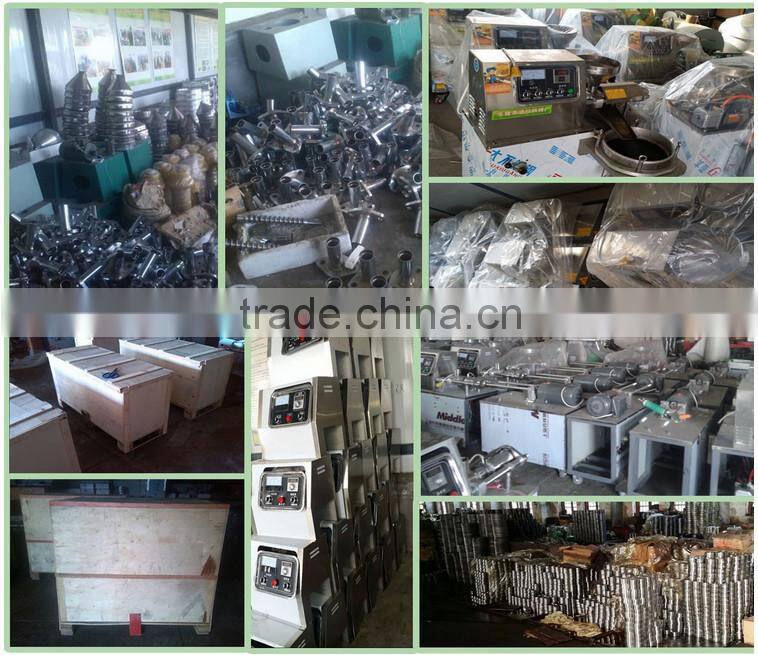

Factory show
