Product Details
| Place of Origin | Zhejiang, China | Brand Name | REGA | |
| Model Number | YH10W-6 |
Product Description
Specifications
1.Passed ISO9001 and IEC60099-4 standard.2.The pass rate is up to 99.9%
3.OEM and sample is available.

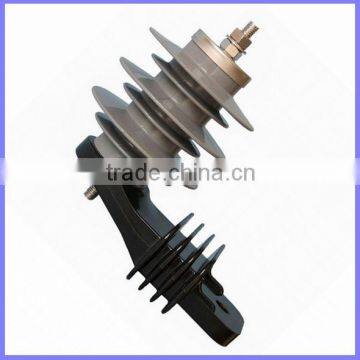

Metal -oxide surge arrester(Lightning arrster, polymer surge arrester)
Model:YH10W-6
Specifications:
1.ISO9001 quality management system
2.Own test laboratory
3.To provide the corresponding product components
4.The technical performance is accordding to IEC60099-4 and IEEE(ANSI)C62.11
5.exportation design
Main Technical Parameter
Rated voltage r.m.s: 6kV
Nominal discharge current:10kA
Maximun continous operating voltage(Uc)(kV):5.1kV
Residual voltage at:
1/4μ s lightning current impulse residual voltage(kV):19.5
8/20μ s lighting current impulse residual voltage(kV):17.7
30/60μ s switching current impulse residual voltage(kV): 14.9
Long duration current impulse withstand:
2ms rectangular current(A):250
Operating duty:
4/10u s high current impulse(kA):100
Creepage distance(mm):300mm
Dimension:240*204mm
Any trial order in small quantity is welcomed.
Please contact us now if you have any questions or requirements.
