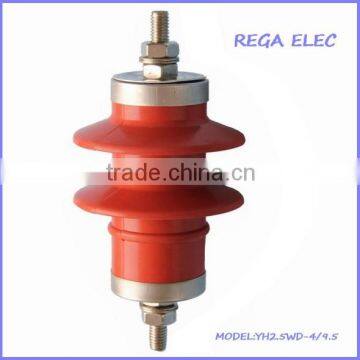

Electric motor,Generator,Capacitor-type surge arrester,YH2.5WD-4/9.5,polymer surge arrster
- 20000 Piece / Pieces per Month
- Shanghai
- T/T D/P D/A Credit Card
You May Like
-
Distribution,Power Station Type surge arrester,YH5WS-10/30,polymer surge arrster
-
Distribution,Power Station Type surge arrester,YH5WZ-10/27,polymer lightning arrster
-
Power Station Type surge arrester,surge protective device, types of lightning arrester
-
LV Metal-oxide surge arrester,YH5W-9,surge protective device,voltage Suppressor
-
YH10W24 Metal-oxide Surge Arrester,voltage Suppressor
-
15kV Metal-oxide Surge Arrester,silicon rubber,polymer lightning arrster
Product Details
| Place of Origin | Zhejiang, China | Brand Name | REGA | |
| Model Number | YH2.5WD-4/9.5 |
Product Description
Specifications
1.ISO9001 quality management system2.Own test laboratory
3.accordding to IEC60099-4 and IEEE(ANSI)C62.11
vide component
Distribution, Power Station Type Lightning Arrester Technical Parameters
Model: YH2.5WD-4/9.5
Specification:
1)Rated voltage:4kV
2)Continuous working voltage:3.2kV
3)DC reference voltageNo less than:2.5KV
Manufacturing standard:
Chinese National Standard
Accord with Chinese national technical requirements GB 11032-2000 JB/T8952-2005, JB/T 10497-2005, DL/T815-2002
More Technical Parameters as below:
Type |
Rated voltage |
MCOV |
Nominal discharge current |
D.C 1mA voltage | 30/60us switching current impulse | 8/20us lightning current impulse | 1/4us lightning current impulse | 2ms rectanglar current impulse withstand | 4/10us high current impulse withstand |
Leaking current
|
kV |
kV |
kA |
kV |
kVp |
kVp |
kVp |
A |
kA |
uA | |
YH2.5WD-4/9.5 | 4 | 3.2 | 2.5 | 5.7 | 7.6 | 9.5 | 10.7 | 200 | 65 | 15 |
YH2.5WD-8/18.7 | 8 | 6.3 | 2.5 | 11.2 | 15.0 | 18.7 | 21.0 | 200 | 65 | 15 |
YH2.5WD-13.5/31 | 13.5 | 10.5 | 2.5 | 18.6 | 25.0 | 31 | 34.7 | 200 | 65 | 15 |
YH5WD-4/9.5 | 4 | 3.2 | 5 | 5.7 | 7.6 | 9.5 | 10.7 | 400 | 100 | 15 |
YH5WD-8/18.7 | 8 | 6.3 | 5 | 11.2 | 15.0 | 18.7 | 21.0 | 400 | 100 | 15 |
YH5WD-13.5/31 | 13.5 | 10.5 | 5 | 18.6 | 25.0 | 31 | 34.7 | 400 | 100 | 15 |
Any trial order in small quantity is welcomed.
Please contact us now if you have any questions or requirements.
