High Intensity 850nm 940nm IR LED

Specifications

High intensity 850nm 940nm IR LED

Features of IR LED:

*Low power consumption

*Long life-solid state reliability

*Available on tape and reel

*RoHS REACH compliant

*Emitted Color:IR

*Viewing Angle:120 degree

*Compatible with SMT automatic equipment, Reflow soder and wave solder

Specification of PLCC6 5050 package IR LED:

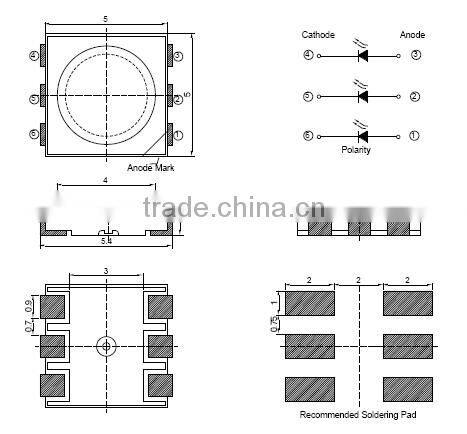

Mechanical Dimensions of 5050 IR LED:

Note:

1.All dimensions are in millimeters (mm);

2.XX is +/-0.1mm, XXX is +/-0.05mm unless otherwise noted;

3.The device has a single mounting surface, the device must be mounted according to the specifications.

Specification of 5050 IR LED:

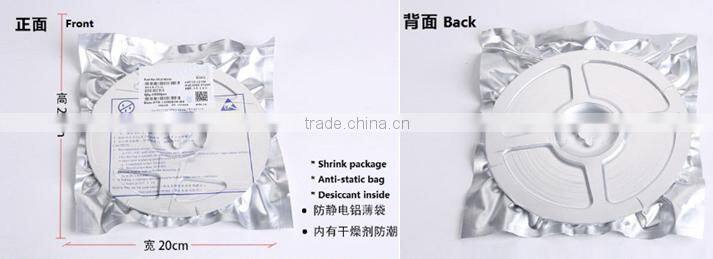

Packaging Dimensions Specification

WEJ Factory:

 Other models of IR LED we produce:

We promise:

 1. Your inquiry will be replied within 24 hours

 2. Pack the goods very well and delivery them as soon as possible

 3. Protection of your sales area, ideas of design and all your private information

 4. Get in touch with us if you have any requirements. We also produce various kinds of LED SMD, such as 3014, 2835, 3528, 5630, 5050, etc.

 5. We will try our best to solve the problems within or out of the warranty time.
