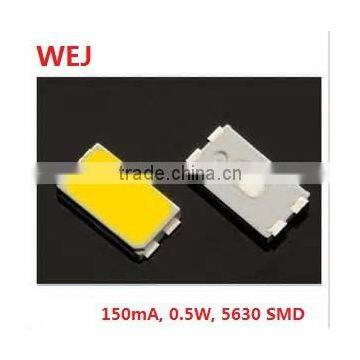

High quality led, 2700K CRI80, 150mA, Warm white 5630 led smd led
USD $0.038 - $0.066
/ Piece
3000 Pieces(Min.Order)
- 6000000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
| Model Number | WEJT56AM8-W2YP01 | Chip Material | InGaN | |
| Emitting Color | Warm White | Luminous Intensity | 19800mcd | |
| Luminous Flux(lm) | 60 | Power | Other, 0.5W | |
| Color Rendering Index(Ra) | 80 | Color Temperature | 2550-2850K | |
| Operating Temperature(℃) | -25, 85 | Storage Temperature(℃) | -40, 100 | |
| Place of Origin | Guangdong, China | Brand Name | WEJ | |
| Certification | CE |
Product Description
Specifications
5630 led1.If=150mA,Vf:2.8-3.4V, Tc:2700K
2.High lumen:55-60lm
3.3000pcs/reel, free sample
4.CE,RoHS,ISO9001approval
High quality led, 2700K CRI80, 150mA, Warm white 5630 led smd led
Product Description
Electrical characteristics datasheet of 5630 led:
| Part No. | Emitted Color | Resin Color | Viewing Angle |
| WEJT56AM8-W2YP01 | Warm White | Yellow | 120degree |
Absolute Maximum Ratings at Ta=25 ℃
| Parameter | Symbol | Value | Unit |
| Power dissipation | Pd | 500 | mW |
| DC Forward Current | If | 150 | mA |
| Peak Forward Current | Ifp | 700 | mA |
| Reverse Voltage | Vr | 5 | V |
| Electro-Static-Discharge | ESD | 1000 | V |
| Operating Temperature | Topr | -25 to +85 | ℃ |
| Storage Temperature | Tstg | -40 to +100 | ℃ |
| Lead Solder Temperature | Tsol | 260 for 5sec | ℃ |
Notes:
1. 1/10 duty cycle, 0.1ms pulse width;
2. The product is sensitive to static electricity and must be carefully taken when handling product.
Electrical/Optical Characteristics Ta=25 ℃
| Parameter | Symbol | Condition | Value | Unit | ||
| Min | Typ | Max | ||||
| Forward voltage | Vf | If=150mA | 2.8 | 2.8 | 3.6 | V |
| Luminous flux | If=150mA | 60 | 63 | 70 | lm | |
| Chromaticity coordinate | X | If=150mA | --- | 0.46 | --- | --- |
| Y | If=150mA | --- | 0.41 | --- | --- | |
| Color temperature | Tc | If=150mA | 2550 | 2720 | 2850 | K |
| Color rendering index | Ra | If=150mA | --- | 80 | --- | % |
| Reverse current | Ir | Vr=5V | --- | --- | 10 | uA |
Notes:
1.Forward voltage:+/-0.1V
2.Color temperature:+/-5%
3.Luminous Flux:+/-10%
Package outline dimensions of smd diode 5630:
Packaging & Shipping
| Product | MPQ | Quantity/carton | GW/carton | Carton size |
| 5630 led | 3000pcs/roll | 38 rolls | 6.6kg | 47*27*22cm |
Shipment:
*By internation express: DHL,FedEx,UPS,TNT..all available
*By air from Shenzhen or HongKong airport
*By sea from Shenzhen or HongKong port.
Our Services
1. Strong R&D team, customized service is welcome
2. Free sample support, small order acceptable.
3. 2 years quality gurantee, free replacement.
