High Quality Super Bright LED SMD 3030 With High CRI
- Shenzhen
- Credit Card
You May Like
Product Details
| Model Number | W3030W22Y001 | Chip Material | InGaN | |
| Emitting Color | Other, white | Luminous Intensity | 36000~43000 | |
| Luminous Flux(lm) | 110-130lm | Optical Attenuation(%) | 5 | |
| Power | Other, 1W | Power Dissipation | 1.2 | |
| Color Rendering Index(Ra) | 80 | Color Temperature | 6000-6500K | |
| Operating Temperature(℃) | -35, 100 | Storage Temperature(℃) | -35, 85 | |
| Brand Name | WEJ | Certification | CE |
Product Description
High Quality Super Bright LED SMD 3030 with High CRI 80Ra
Products details:
Part No. | Emitted Color | Resin color | Viewing Angle 2θ1/2 |
W3030W22Y001 | (White) | (Yellow) | 140 |
Parameter | Symbol | Value | Unit |
Power dissipation | Pd | 1200 | mW |
DC Forward Current | If | 300 | mA |
Peak Forward Current(1) | Ifp | 600 | mA |
Reverse Voltage | Vr | 5 | V |
Electro-Static-Discharge(2) (HBM) | ESD | 2000 | V |
Operating Temperature | Topr | -25to+85 | ℃ |
Storage Temperature | Tstg | -40to+100 | ℃ |
Lead Solder Temperature | Tsol | 260 for 5sec | ℃ |
Parameter | Symbol | Condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Forward voltage) | Vf | If=300mA | --- | 3.3 | 3.6 | V |
Luminous flux | Φ | If=300mA | 90 | 105 | --- | lm |
Chromaticity coordinate | X | If=300mA | --- | 0.33 | --- | --- |
Y | If=300mA | --- | 0.32 | --- | --- | |
Color temperature | Tc | If=300mA | 5500 | 6500 | 7000 | K |
Color rendering index | Ra | If=300mA | --- | 75 | --- | % |
Reverse current | Ir | Vr=5V | --- | --- | 10 | μA |
Services:
1. 3 years warranty
2. 5 years technical service team
fessional sales team
4.Fast delivery
Shipping:
shipped 7days after payment,by DHL,UPS,TNT,By air,by sea
Samples in stock,we can send them in 2 days,
and orders normally is sent out by 5-7days,or according to the quantity
Packaging:
Application:
our company information:

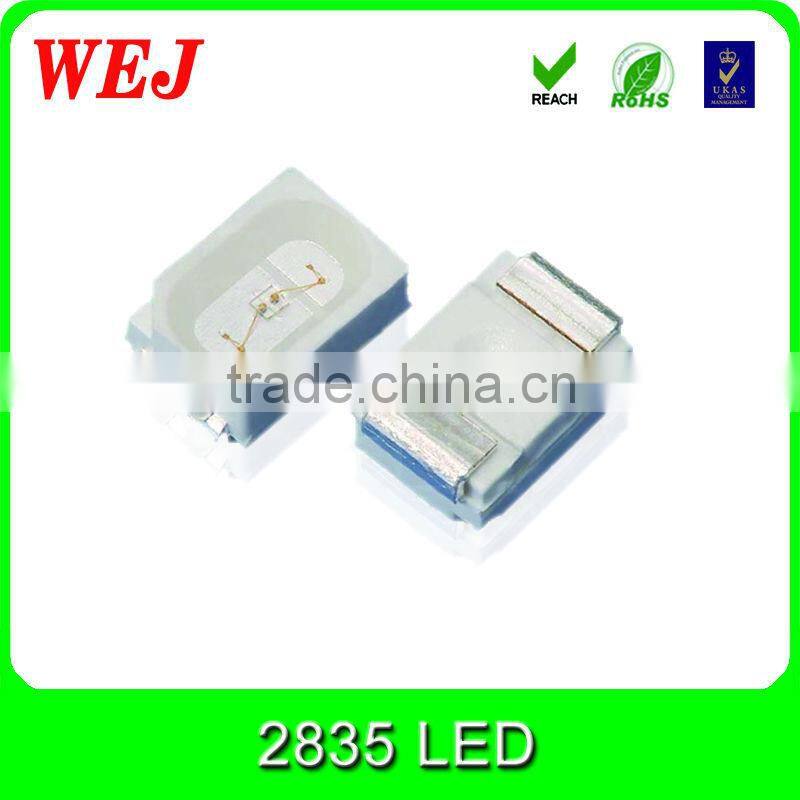

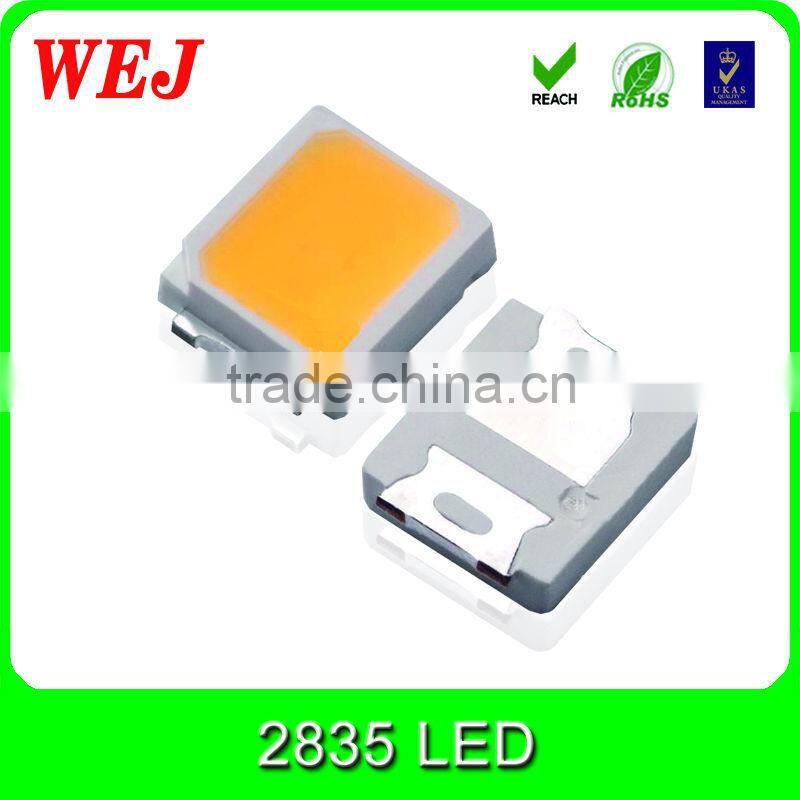

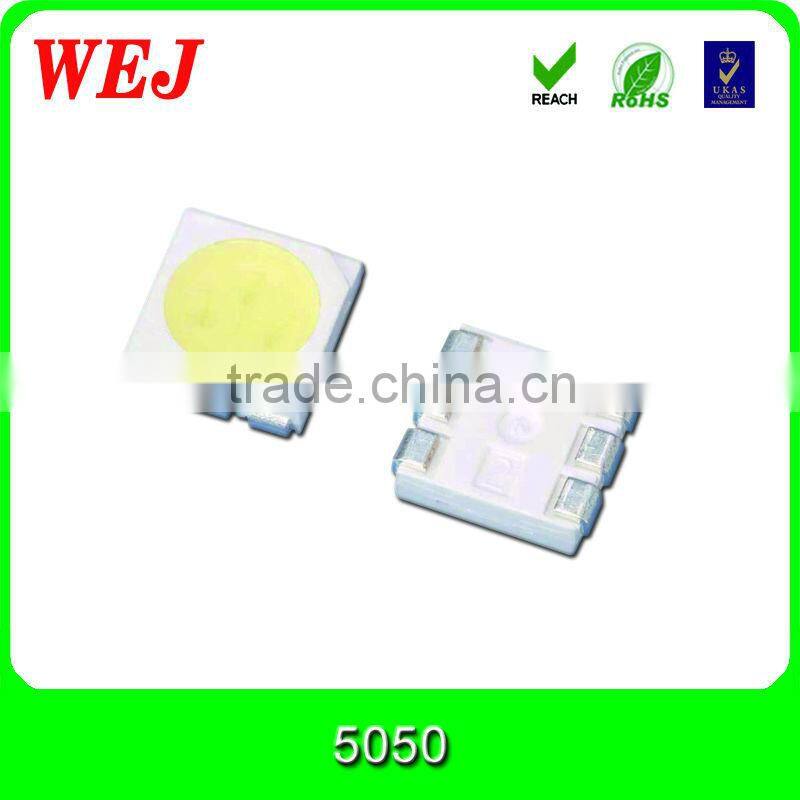

Currently, WEJ has different packages of LED Diodes . 3mm, 5mm DIP LED are used as indicator light, infrared emission tube, photo diodes etc. And 3528,2835,5050,5630 SMD LED are focus on high-end lighting,.
WEJ has introduced the most advanced production line and test equipment from the world-class brand ASM. Furthermore, our WEJ carries out ISO international quality management system strictly.
